Motors
A wide range of commutator motors, brushless motors, three-phase motors, pneumatic motors, and battery-powered motors is available to drive FLUX pumps—including explosion-proof models for hazardous areas.
The choice of motor affects the pump’s flow rate, speed, and range of applications. Suitable motors are available for the 300, 400, MINIFLUX, and VISCOPOWER series.
Electric Motors
Commutator and brushless motors for the 300, 400, and VISCOPOWER series. Also available in explosion-proof versions.
Battery-powered motors
Cordless, portable drive for the 300, 400, and VISCOPOWER series
Three-phase motors
For continuous industrial operation at a constant speed
Compressed Air Motors
For Ex-rated areas – no electrical connection required
Advantages
Can be combined flexibly
Each motor is compatible with different pumps—a drive solution for a variety of applications.
Explosion-proof drives
Commutator, brushless, and pneumatic motors in ATEX-compliant designs—for Zone 1 and Zone 2.
Continuously variable speed control
Commutator motors with EL electronics and brushless motors – flow rate continuously adjustable.
Cordless, battery-powered operation
FBM-B 3100 for the 300 Series and FBM 4100 for the 400 Series, MINIFLUX, and VISCOPOWER – portable use without a power cord or compressed air.
Applications
Typical Applications and Areas of Use for FLUX Drive Motors
Universal Support
Brushless motors, 230–800 W, for the 300, 400, and VISCOPOWER series—flexible and lightweight.
Continuous Industrial Operation
Three-phase motors with constant speed – F 403, F 414, DSM for VISCOPOWER.
Compressed Air Operation
FPM and F 416 Ex – no electrical connection, intrinsically safe.
Motor Types in Detail
Selecting the right motor depends on the pump series, the application (explosion protection, food processing), and the performance requirements. The following sections explain the five motor types and compare their areas of application.
Lightweight, robust, and cost-effective to operate: FLUX collector motors are designed for reliable use with drum and container pumps.
- Lightweight and compact design
- Quiet operation
- Power ratings from 230 to 800 watts
- Robust housing for industrial use
- Ideal for mobile drum and container pumps
Motor |
Power |
Speed |
Series (pump) |
Special Feature |
| FEM 3070 | 230 W | 2-stage | 300 | Compact, 1.5 kg |
| FEM 4070 | 500 W | Continuously variable | 400 | Polyamide housing, 2.6 kg |
| F 457 | 800 W | Optional continuously variable (EL) | 400, VISCOPOWER | PP housing, 4 kg |
| F 458 | 460–700 W | Optional stepless (EL) | 400, VISCOPOWER | IP 55, also 12/24 V DC |
| F 460 Ex | 460–700 W | Optional stepless (EL) | 400, VISCOPOWER | Ex db eb IIC T6/T5, aluminum |
FLUX brushless motors are designed for low-maintenance continuous operation and precise material handling applications.
- Maintenance-free drive without carbon brushes
- Low wear even at high switching frequencies
- Ideal for continuous operation and sensitive dosing applications
- Quiet operation, especially at low speeds
- Also flexible for short-term operation
Model |
Power |
Speed |
Series |
Special Feature |
| FBM 4000 Ex | 600 W | 9,200 min, continuously variable | 400, VISCOPOWER | Ex db eb IIC T6/T5, aluminum |
Continuously variable speed control as standard. Explosion-proof in accordance with PTB 10 ATEX 1054 X.
FLUX three-phase motors are suitable for demanding conveying processes with high duty cycles and constant power requirements.
- Low-wear drive for continuous operation
- Constant speed even under load
- Designed for extreme operating conditions
- Conveying of highly viscous media up to 80,000 mPas
- High operational reliability in demanding applications
Model |
Capacity |
Speed |
Series |
Special Feature |
| F 403 | 550 W | Selectable: 2,850 min or 1,450 min | 400, VISCOPOWER | Ex e II T3/T4, 8 kg |
| F 414 | 550 W, 750 W, 1,100 W | Constant speed | 400, VISCOPOWER | Up to 1,100 W, 8.8–12.8 kg |
| DSM | 750–1,100 W | 750 or 1,000 min | 400, VISCOPOWER | Ex e II T3/T4, constant |
| Spur gear | 800–1,100 W | 47–472 min | 400, VISCOPOWER | Spur gear, 100 Hz |
Voltage 230/400 V (standard) or 380–500 V/100 Hz (spur gear). Explosion protection for F 403 and DSM.
FLUX air motors are designed for safe use in hazardous areas and with flammable media.
- Powerful drive for demanding applications
- Suitable for highly flammable liquids
- Ideal for hazardous areas
- Lightweight and easy to handle for mobile use
- Speed can be adjusted easily and precisely
- Robustly built for everyday industrial use
Model |
Power |
Pressure |
Series |
Special Feature |
| FPM | 600–2,000 W | 6 bar | 400, VISCOPOWER | Protection Class: IP 55Ex: II 2 G c T5 |
| F 416 Ex | 470 W | 6 bar | 400, VISCOPOWER | Ex: II G IIC T6, only 0.9–1.4 kg |
Speed adjustment via operating pressure or air flow. For potentially explosive atmospheres without electrical installations.

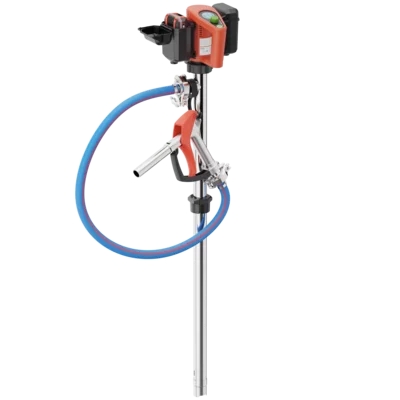

FLUX battery-powered motors enable off-grid material handling wherever flexibility and mobile operation are required.
- Off-grid operation—even outdoors
- Batch filling for repeatable dosing
- Brushless and maintenance-free
- Can be used worldwide thanks to battery operation
MODEL |
POWER |
SPEED |
SERIES |
SPECIAL FEATURE |
| FBM-B 3100 | 100 W | Continuously variable | 300, JUNIORFLUX, COMBIFLUX | Brushless, IP44, only 1.2 kg |
| 420 W (ventilated) 260 W (enclosed) |
5,500–12,250 rpm, adjustable in 10 steps |
400, VISCOPOWER | Brushless, LCD display, LED light, IP24/IP44, 2.8 kg, batch filling with filling profiles, dry-run protection |
For mobile drum and IBC applications with FLUX 400 Series pump units and VISCOPOWER F 570.
Motor Types at a Glance
Key performance data and features for selection and comparison.
| FEATURE | BRUSH MOTOR | BRUSHLESS MOTOR | THREE-PHASE MOTOR | AIR MOTOR | BATTERY MOTOR |
|---|---|---|---|---|---|
 |
 |
 |
 |
 |
|
| Power | 230–800 W | 600 W | 550–1,100 W | 470–2,000 W | 100–420 W |
| Speed | 6,000–9,500 rpm | 9,200 rpm | 700–930 rpm | Variable | 5,500–12,250 rpm |
| Speed Control | Optional (EL) | ✓ Infinitely variable | – | Via air supply | Variable |
| Explosion Protection | ✓ (F 460 Ex) | ✓ (FBM 4000 Ex) | ✓ (F 403, DSM) | ✓ (inherently safe) | – |
| Weight | 1.5–5.9 kg | 6.2 kg | 8–23 kg | 0.9–10 kg | 1.2–2.8 kg |
| Product Series (compatible pumps) |
300, 400, VISCOPOWER | 400, VISCOPOWER | 400, VISCOPOWER | 400, VISCOPOWER | 300, 400, VISCOPOWER |
| Ideal for | Universal, flexible use | Maintenance-free operation, Ex applications | High pressure, industrial applications | ||
| Show | Show | Show | Show | Show |
