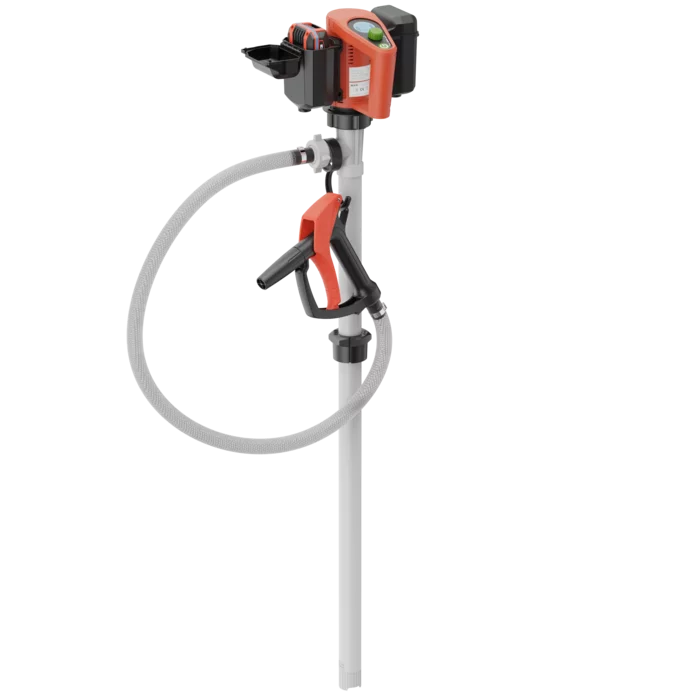

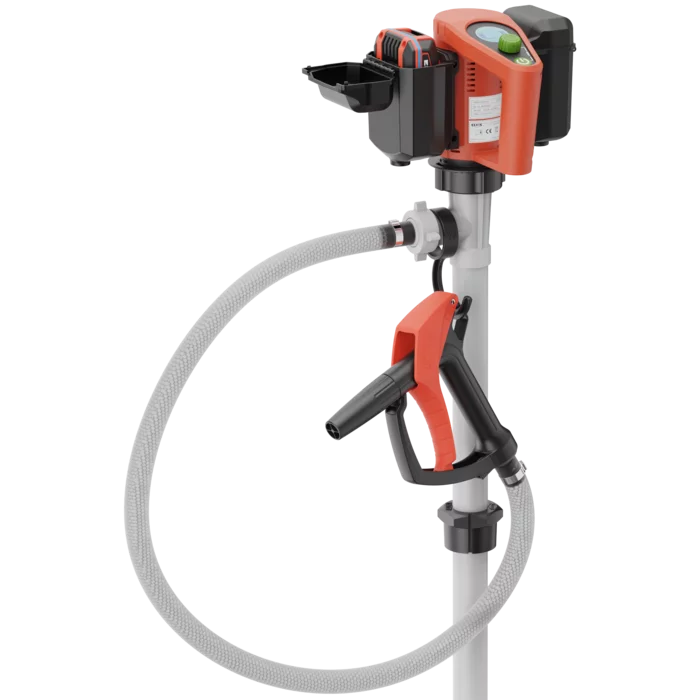

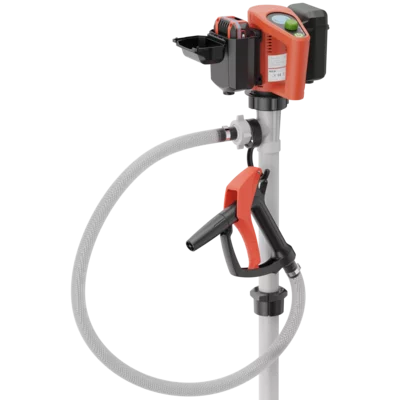

Pump set for acids and alkalis with FBM 4100 Core battery motor
F 430 PP-40/33-1000 | Polypropylen / Polypropylene
Item no. 10-40140010
EAN: 4260387214292
For mobile transfer of compatible acids and alkalis from 200-litre drums.
Go to product details
- Weight:
- 6.1 kg
- motor type:
- Battery Motor FBM 4100 Core
- material:
- Polypropylene
- for use in haz. area:
- no
Product details
The preconfigured pump set transfers compatible acids and alkalis from 200-litre drums. The FBM 4100 Core battery motor enables operation without a mains connection.
The F 430 pump has a polypropylene outer tube and a mechanical seal. It separates into two parts without tools.
The mechanical seal prevents fluid from entering the inner tube. This simplifies cleaning and reduces cross-contamination between different fluids.
The hose, dispensing nozzle and drum adapter use fluid-compatible plastics. Two batteries and a dual charger support continuous operation.
The chemical resistance of all components must be checked for the specific fluid before use.
- Battery-powered transfer directly at the point of use
- Polypropylene components for compatible chemically aggressive fluids
- Tool-free separation simplifies cleaning and maintenance
- Mechanical seal protects the inner tube from the fluid
- Reduced risk of cross-contamination between fluids
- Two batteries and a dual charger reduce interruptions
| Feature | Value |
|---|---|
| Gewicht | 6.1 kg |
| for use in haz. area | no |
| FDA approval | no |
| FOOD approval | no |
| immersion length | 1000 mm |
| material impeller | ethylene tetrafluoroethylene |
| material seal | FKM |
| material | Polypropylene |
| material shaft | Hastelloy C |
| mechanical seal | PTFE/carbon, oxide ceramics, HC, FKM |
| cooling | external ventilated |
| rated output | 0,42 kW |
| protection class | IP 24 |
| speed control | yes |
| motor type | Battery Motor FBM 4100 Core |
| type drum pump | F 430 |
| Ø outlet spout | 25 mm |
| outer diameter | 27,00 mm |
| hose length from | 2,0 m |
| nominal diameter | DN 19 mm |
| certificates | certificates |
| type hose line | pvc hose |
| material seal | FKM |
| material | polypropylene |
| Hand nozzles | technical data |
| Inliner | no |
| swivelling | yes |
| base part | 40 mm |
| shaft bearing | slide bearing - not in contact with the medium |
- F 430 PP-40/33 polypropylene drum pump
- Immersion depth of 1,200 mm
- FBM 4100 Core battery motor, 420 W
- DN 19 PVC hose, 2 m long

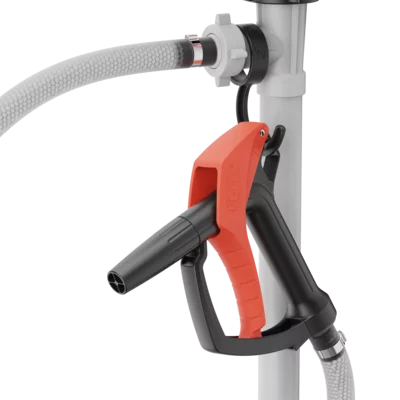

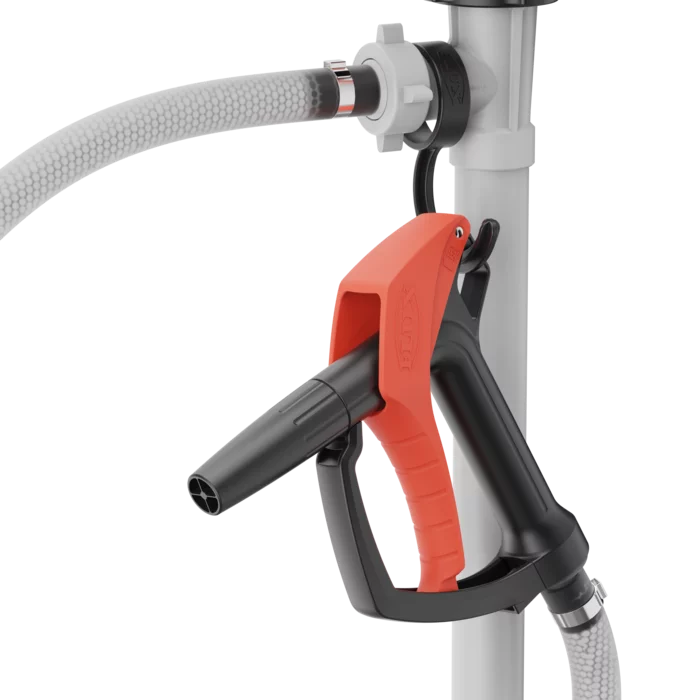

- Polypropylene dispensing nozzle
- Polypropylene drum adapter
- Two B40-4100 batteries, 18 V / 4 Ah
- BCH-4100 dual charger, 220–240 V, 50–60 Hz
