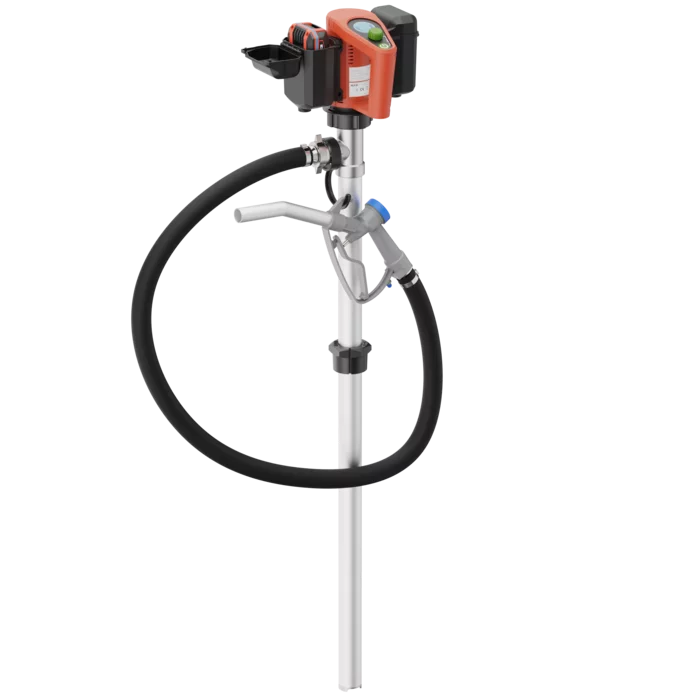

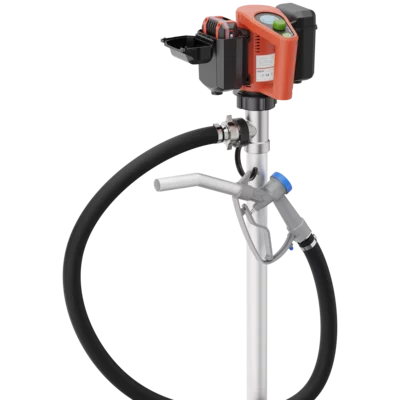

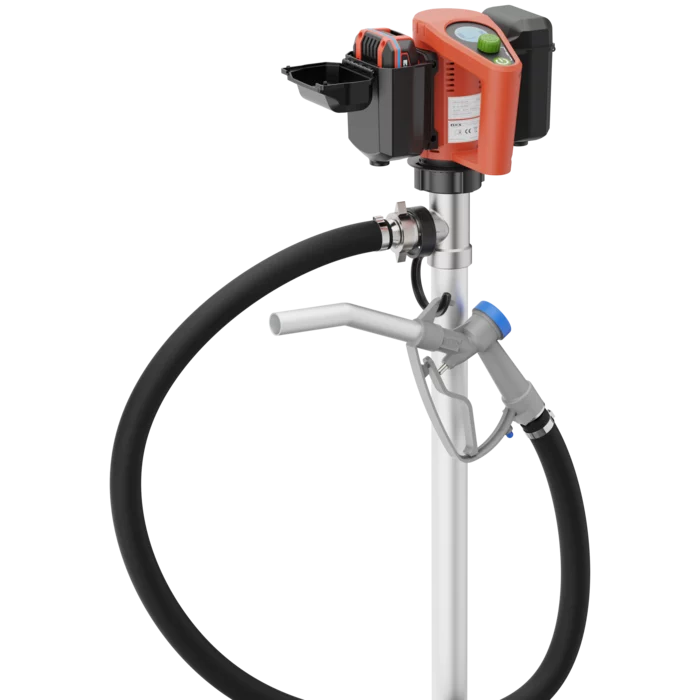

Pump set for mineral oil products with FBM 4100 Core battery motor
F 430 AL-41/38-1200 | Aluminium
Item no. 10-40110012
EAN: 4260387214261
For mobile, battery-powered transfer of mineral oil products from 200-litre drums.
Go to product details
- Weight:
- 7 kg
- motor type:
- Battery Motor FBM 4100 Core
- supply voltage:
- without V
- material:
- Aluminium
- for use in haz. area:
- no
Product details
The preconfigured pump set transfers mineral oil products from 200-litre drums. The FBM 4100 Core battery motor enables cordless operation at flow rates up to 80 l/min.
The aluminium F 430 pump is fitted with a mechanical seal. It can be separated into two parts without tools for easy cleaning.
The set includes a hose, dispensing nozzle and drum adapter. Two batteries and a dual charger support continuous operation.
- Battery-powered transfer directly at the point of use
- Flow rate up to 80 l/min for efficient transfer processes
- Pump separates without tools for quick cleaning
- Mechanical seal prevents fluid from entering the inner tube
- Suitable for lubricating, crystallising or hardening fluids
- Two batteries and a dual charger reduce interruptions
| Feature | Value |
|---|---|
| Gewicht | 7 kg |
| Ex-marking | without |
| for use in haz. area | no |
| FDA approval | no |
| FOOD approval | no |
| immersion length | 1200 mm |
| material impeller | ethylene tetrafluoroethylene |
| material seal | FKM |
| material | Aluminium |
| material shaft | stainless steel |
| mechanical seal | PTFE/carbon, oxide ceramics, S, NBR |
| cooling | external ventilated |
| rated output | 0,42 kW |
| protection class | IP 24 |
| speed control | yes |
| supply voltage | without V |
| motor type | Battery Motor FBM 4100 Core |
| type drum pump | F 430 |
| cable length | without m |
| frequency | without Hz |
| type plug | without |
| undervoltage prot. | without |
| Suction side | without |
| Ø outlet spout | 25 mm |
| outer diameter | 34,00 mm |
| hose length from | 2,0 m |
| nominal diameter | DN 25 mm |
| certificates | certificates |
| type hose line | mineral oil-hose |
| material seal | NBR |
| material | aluminium |
| Hand nozzles | technical data |
| Inliner | no |
| material inside | NBR black |
| swivelling | yes |
| base part | 41 mm |
| shaft bearing | slide bearing - not in contact with the medium |
| dry installation | no |
| Ex-marking | without |
| air consumption | without l/s |
| operating pressure | without bar |
- F 430 AL-41/38 aluminium drum pump
- Immersion depth of 1,200 mm
- FBM 4100 Core battery motor, 420 W
- DN 25 mineral oil hose, 2 m long

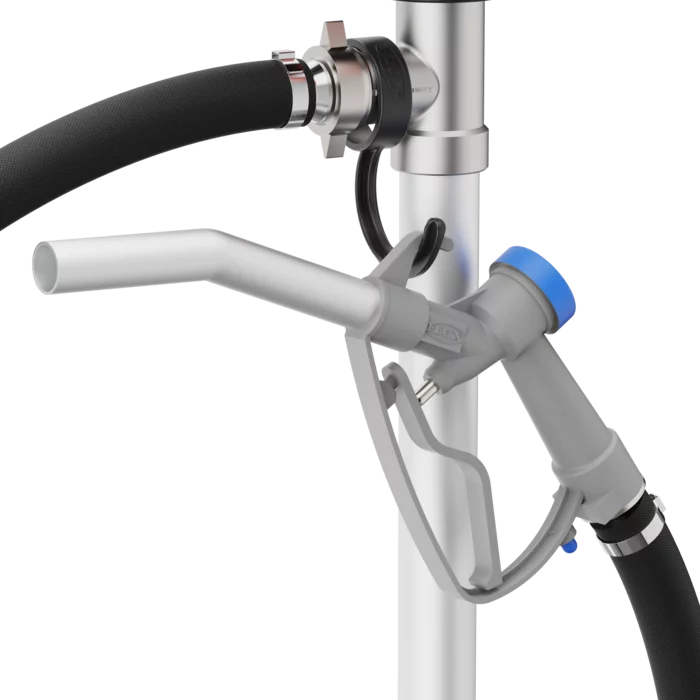

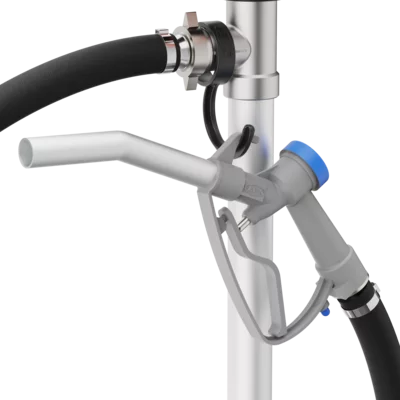

- Aluminium dispensing nozzle
- Polypropylene drum adapter

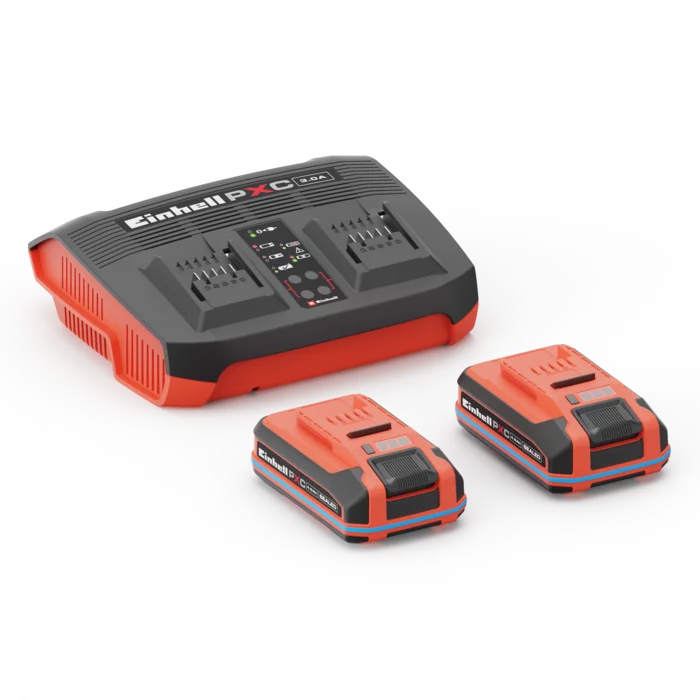

- Two B40-4100 batteries, 18 V / 4 Ah
- BCH-4100 dual charger, 220–240 V, 50–60 Hz
