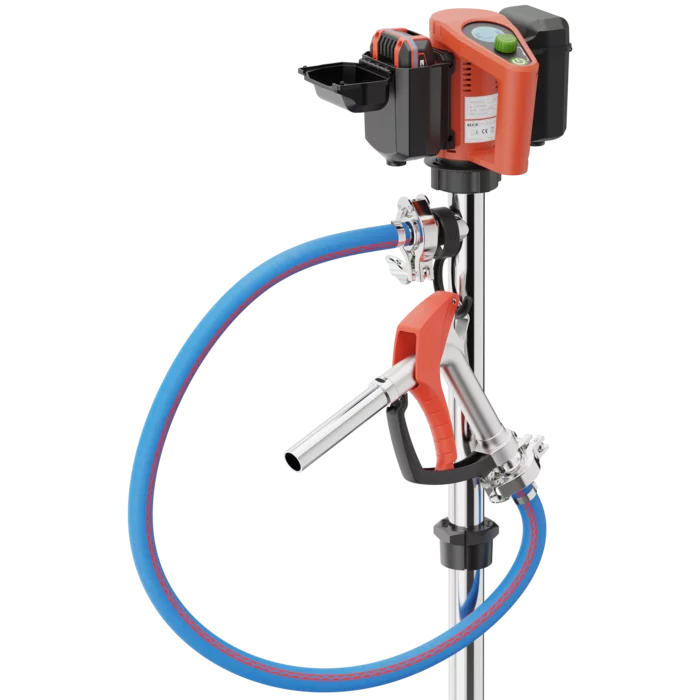

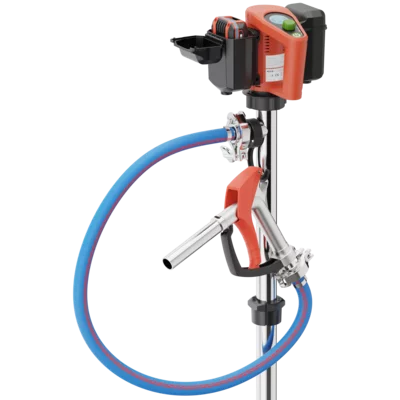

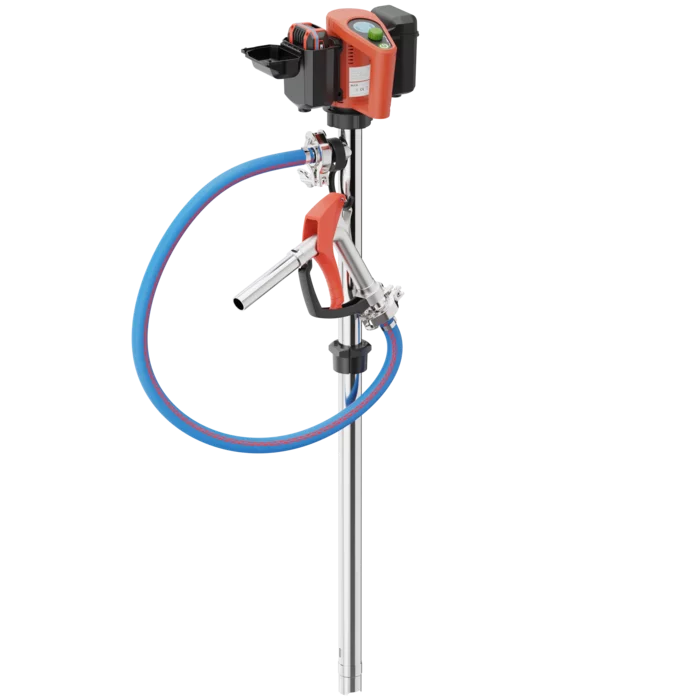

Pump set for food and pharmaceutical products with FBM 4100 Core battery motor
F 427 S-43/38-1000 FOOD | Edelstahl | FKM
Item no. 10-40127010
EAN: 4260387214278
For mobile transfer and dispensing of food and pharmaceutical products from 200-litre drums.
Go to product details
- Weight:
- 9.494 kg
- motor type:
- Battery Motor FBM 4100 Core
- material:
- Stainless steel
- for use in haz. area:
- no
Product details
The preconfigured pump set transfers and dispenses food and pharmaceutical products from 200-litre drums. The FBM 4100 Core battery motor enables mobile operation without a mains connection.
The seal-free F 427 FOOD pump is suitable for hygienic applications. It can be fully dismantled in a few steps and with almost no tools.
All wetted parts can be sterilised. The pump also transfers fluids containing solids, including juices with pulp or seasoned soups.
The set includes a hose, stainless steel dispensing nozzle and drum adapter. Two batteries and a dual charger support continuous operation.
- Battery-powered transfer directly at the point of use
- Suitable for hygienic applications in food and pharmaceutical production
- Quick disassembly simplifies cleaning and sterilisation
- All wetted parts can be sterilised
- Transfers fluids containing pulp, spices or other solid particles
- Suitable for food contact according to Regulation (EC) No 1935/2004 and FDA CFR 21
- Two batteries and a dual charger reduce interruptions
| Feature | Value |
|---|---|
| Gewicht | 9.494 kg |
| for use in haz. area | no |
| FDA approval | CFR 21 |
| FOOD approval | EC 1935/2004 |
| immersion length | 1000 mm |
| material impeller | ethylene tetrafluoroethylene |
| material seal | NBR |
| material | Stainless steel |
| material shaft | stainless steel |
| mechanical seal | PTFE/carbon, oxide ceramics, S, NBR |
| cooling | external ventilated |
| rated output | 0,42 kW |
| protection class | IP 24 |
| speed control | yes |
| motor type | Battery Motor FBM 4100 Core |
| type drum pump | FP 427 |
| Suction side | without |
| Ø outlet spout | 28 mm |
| outer diameter | 37 mm |
| hose length from | 2,0 m |
| nominal diameter | DN 25 mm |
| certificates | certificates |
| type hose line | food hose |
| material seal | PTFE/FKM |
| material | stainless steel |
| Hand nozzles | technical data |
| Inliner | no |
| material inside | NBR white |
| swivelling | yes |
| base part | 41 mm |
| shaft bearing | slide bearing - not in contact with the medium |
- F 427 FOOD S-43/38 stainless steel drum pump
- Immersion depth of 1,000 mm
- FBM 4100 Core battery motor, 420 W
- DN 25 food-grade hose, 2 m long

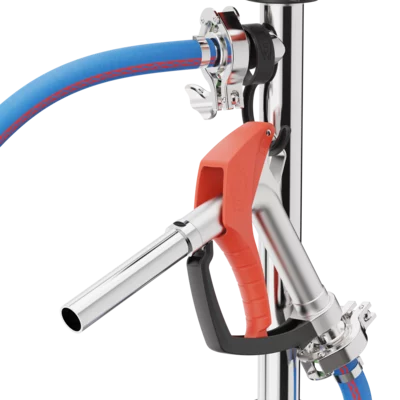

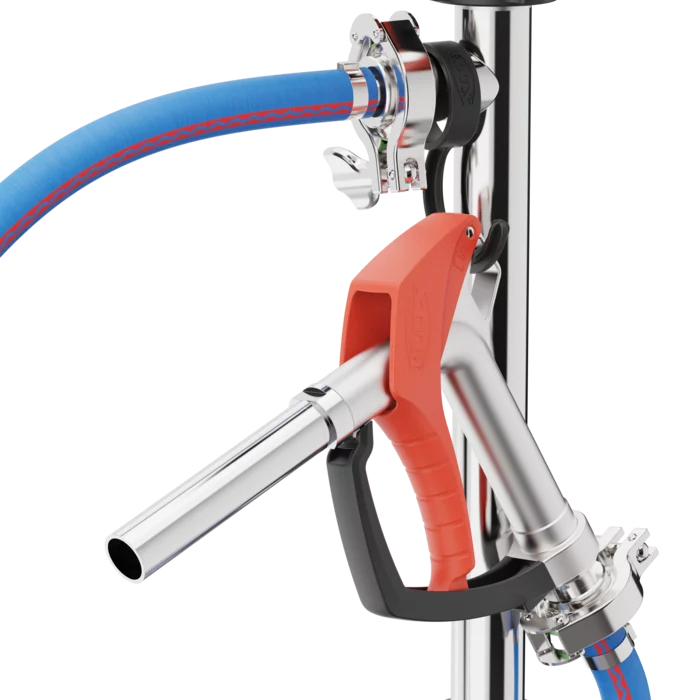

- Stainless steel dispensing nozzle
- S/FKM FOOD hose connector, DN 25
- Conductive polypropylene drum adapter
- Two B40-4100 batteries, 18 V / 4 Ah
- BCH-4100 dual charger, 220–240 V, 50–60 Hz
