Features
- Spray-Coated Version
- Self-priming when dry
- Protected against dry running
- Flow rate adjustable via air pressure
- No bypass required
- Floodable pump design
- Forced reversal for safe restart
- Oil-free operation
- Control valve is not affected by contaminants in the air
- For solid particle sizes up to 6.4 mm
- Available in plastic and metal versions
- Also available in an explosion-proof version
Advantages
- Reliably pumps abrasive, corrosive, and viscous fluids
- Enables high flow rates of up to 380 l/min
- Infinitely adjusts the flow rate via air pressure
- Starts reliably from any shutdown position
- Operates without clogging, even without an additional bypass
- Reduces maintenance requirements thanks to oil-free operation
- Supports service-friendly operational procedures
- Offers material options for different media
- Suitable for flammable media in the appropriate explosion-proof design
Media Examples
- Alcohols in the Pharmaceutical Industry
- Gasoline
- Chlorine bleach
- Cleaning agents
- Pickling solutions
- Wastewater
- Abrasive media
- Corrosive media
- Highly flammable media
- Viscous media
Technical Specifications FDM 40 plastic + metal

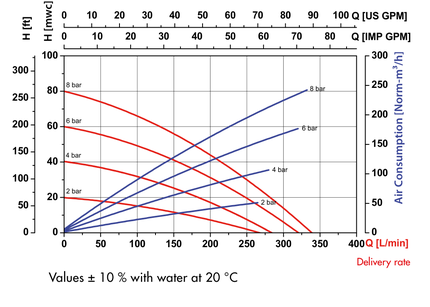

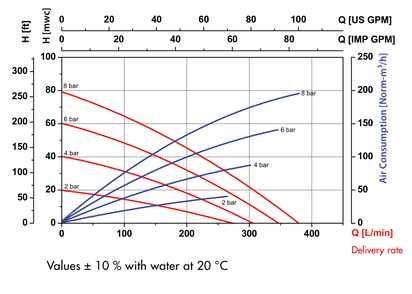

| Feature | Specification | performance diagram |
|---|---|---|
| Delivery rate max. | max. 380 l/min¹ (Metal version: 340 l/min¹) |
Plastic version:
|
| Delivery pressure | Max. 8 bar | |
| Operating pressure | max. 8 bar | |
| Dry suction head | max. 6.0 m¹ | |
| Suction head with liquid | max. 7.6 m¹ | |
| Solid particle size | max. 6.4 mm | |
| Viscosity | min. 1 mPas to max. 15,000 mPas² | |
| Housing materials | Aluminum, gray cast iron, polypropylene, polyvinylidene fluoride, stainless steel | |
| Media / Fluids | Abrasive media, corrosive media, highly flammable media, viscous media | |
| Connection: Pressure port | G 1 1/2 or 1 1/2" flange | |
| Suction connection | G 1 1/2 or 1 1/2" flange | |
| Applications | Ex |
Metal version:
1 Depends on pump model, operating pressure, and fluid
2 Depends on the fluid’s flow characteristics
Dimensions [mm] FDM 40 plastic version
FDM 40 plastic variants
| Typ | Pump Housing | Diaphragm | Ball | Hub | Seal | weight | Part No. | |
|---|---|---|---|---|---|---|---|---|
 |
FDM 40 PP/AA | Polypropylene | Santoprene | Santoprene | PP | EPDM | 28,1 kg | 10-M40 40 010 |
| FDM 40 PP/TT | Polypropylene | PTFE | PTFE | PP | PTFE | 28,1 kg | 10-M40 40 100 | |
| FDM 40 PVDF/TT | Polyvinylidene fluoride | PTFE | PTFE | PVDF | PTFE | 41,7 kg | 10-M40 60 000 |
FDM 40 metal variants
For use in potentially explosive atmospheres in accordance with the ATEX Directive 2014/34/EU.
| Typ | Ex | Pump Housing | Diaphragm | Ball | Hub | Seal | Weight | Part No. | |
|---|---|---|---|---|---|---|---|---|---|
 |
FDM 40 AL/NN |  |
Aluminium | NBR | NBR | AL | NBR | 23,4 kg | 10-M40 10 000 |
| FDM 40 AL/TT | |
Aluminium | PTFE | PTFE | AL | PTFE | 23,4 kg | 10-M40 10 100 | |
| FDM 40 S/TT | |
Stainless steel | PTFE | PTFE | Stainless Steel | PTFE | 38,3 kg | 10-M40 20 100 | |
| FDM 40 GG/NN | |
Grey cast iron | NBR | NBR | PP | NBR | 36,1 kg | 10-M40 30 000 |
