Features
- Spray-Coated Version
- Self-priming when dry
- Protected against dry running
- Flow rate adjustable via air pressure
- No bypass required
- Floodable pump design
- Forced reversal for safe restart
- Oil-free operation
- Control valve is insensitive to contaminants in the air
- Housing made of conductive acetal, polypropylene, or PVDF
- Also available in an Ex-rated version
Advantages
- Reliably pumps abrasive, corrosive, and viscous fluids
- Enables infinitely variable operation via air pressure
- Operates without clogging, even without an additional bypass
- Starts reliably from any shutdown position
- Reduces maintenance requirements thanks to oil-free operation
- Ensures a long service life in industrial applications
- Suitable for flammable media in the appropriate Ex-rated version
- Remains safe to operate even when contaminants are present in the compressed air
Media Examples
- Alcohols in the Pharmaceutical Industry
- Gasoline
- Chlorine bleach
- Cleaning agents
- Pickling solutions
- Wastewater
- Abrasive media
- Corrosive media
- Highly flammable media
- Viscous media
Technical Specifications

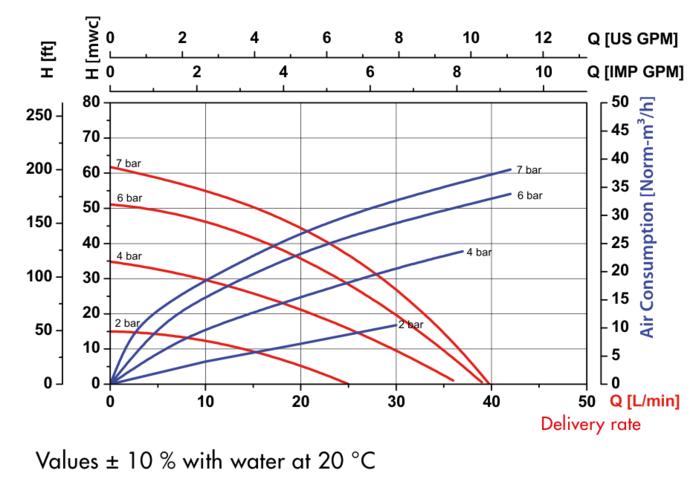

| Feature | Specification | performance diagram |
|---|---|---|
| Delivery rate max. | max. 40 l/min¹ |  |
| Delivery pressure | Max. 7 bar | |
| Operating pressure | max. 7 bar | |
| Dry suction head | max. 4 m¹ | |
| Suction head (product-filled) | max. 7.6 m¹ | |
| Solid particle size | max. 1.6 mm | |
| Viscosity | min. 1 mPas to max. 15,000 mPas² | |
| Housing materials | Conductive acetal, polypropylene, polyvinylidene fluoride | |
| Media / Fluids | Abrasive media, corrosive media, highly flammable media, viscous media | |
| Pressure connection | G 3/8 | |
| Suction connection | G 3/8 | |
| Application | Ex |
1 Depends on pump model, operating pressure, and fluid
2 Depends on the fluid’s flow characteristics
Dimensions FDM 10 [mm]
FDM 10 variants
| Typ | Ex | Pump Housing | Diaphragm | Ball | Hub | Seal | Weight | Part No. | |
|---|---|---|---|---|---|---|---|---|---|
 |
FDM 10 PP/AA | - | Polypropylene | Santoprene | Santoprene | PP | EPDM | 1,6 kg | 10-M10 40 010 |
| FDM 10 PP/TT | - | Polypropylene | PTFE | PTFE | PP | PTFE | 1,6 kg | 10-M10 40 110 | |
| FDM 10 AC/TT * |  |
Acetal conductive | PTFE | PTFE | Acetal | PTFE | 1,9 kg | 10-M10 50 110 | |
| FDM 10 PVDF/TT | - | Polyvinylidene fluoride | PTFE | PTFE | PVDF | PTFE | 2,1 kg | 10-M10 60 110 |
*Electrically conductive for use in hazardous areas according to ATEX-Directive 2014/34/EU.
