Features
- Injected Version
- For viscosities up to 15,000 mPas
- Dry-run-proof and self-priming
- 100% start-up reliable
- Solid particle sizes up to 1.6 mm
- Low air consumption
- Connections on both suction and discharge sides feature both internal and external threads
- Alternative connection positions for suction and discharge sides
- Housing made of conductive acetal or polypropylene
- Also available in an explosion-proof version
Advantages
- Reliably pumps abrasive, corrosive, and viscous fluids
- Operates oil-free, thereby reducing maintenance requirements
- Starts up reliably even when dry
- Handles media with a high gas content
- Supports flexible installation scenarios through alternative connection positions
- Reduces compressed air consumption thanks to its energy-efficient design
- Reduces operating noise thanks to an integrated silencer
- Suitable for flammable media in the appropriate explosion-proof version
Media Examples
- Abrasive Media
- Abrasive media
- Flammable media
- High-viscosity media
- Media containing solid particles
- Liquids with a high gas content
Technical Specifications
| Feature | Specification |
|---|---|

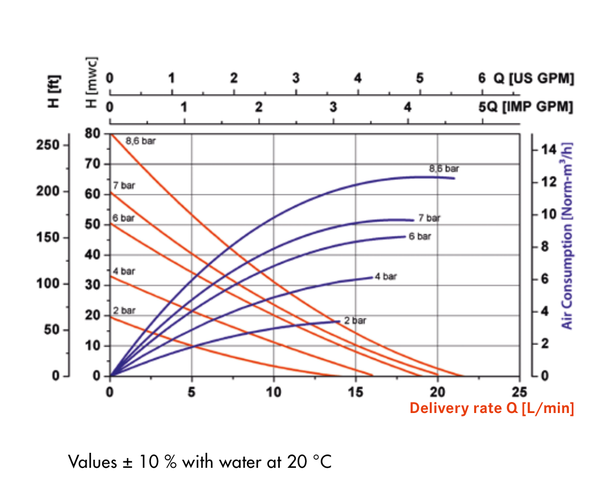

| Flow Rate | max. 20 l/min¹ |
| Delivery pressure | Max. 8.6 bar |
| Operating pressure | min. 3 bar to max. 8.6 bar |
| Dry suction head | max. 4.5 m¹ |
| Suction head with product | max. 9.5 m¹ |
| Solid particle size | max. 1.6 mm |
| Viscosity | min. 1 mPas to max. 15,000 mPas² |
| Housing materials | Conductive acetal, polypropylene |
| Media / Fluids | Abrasive media, corrosive media, highly flammable media, viscous media |

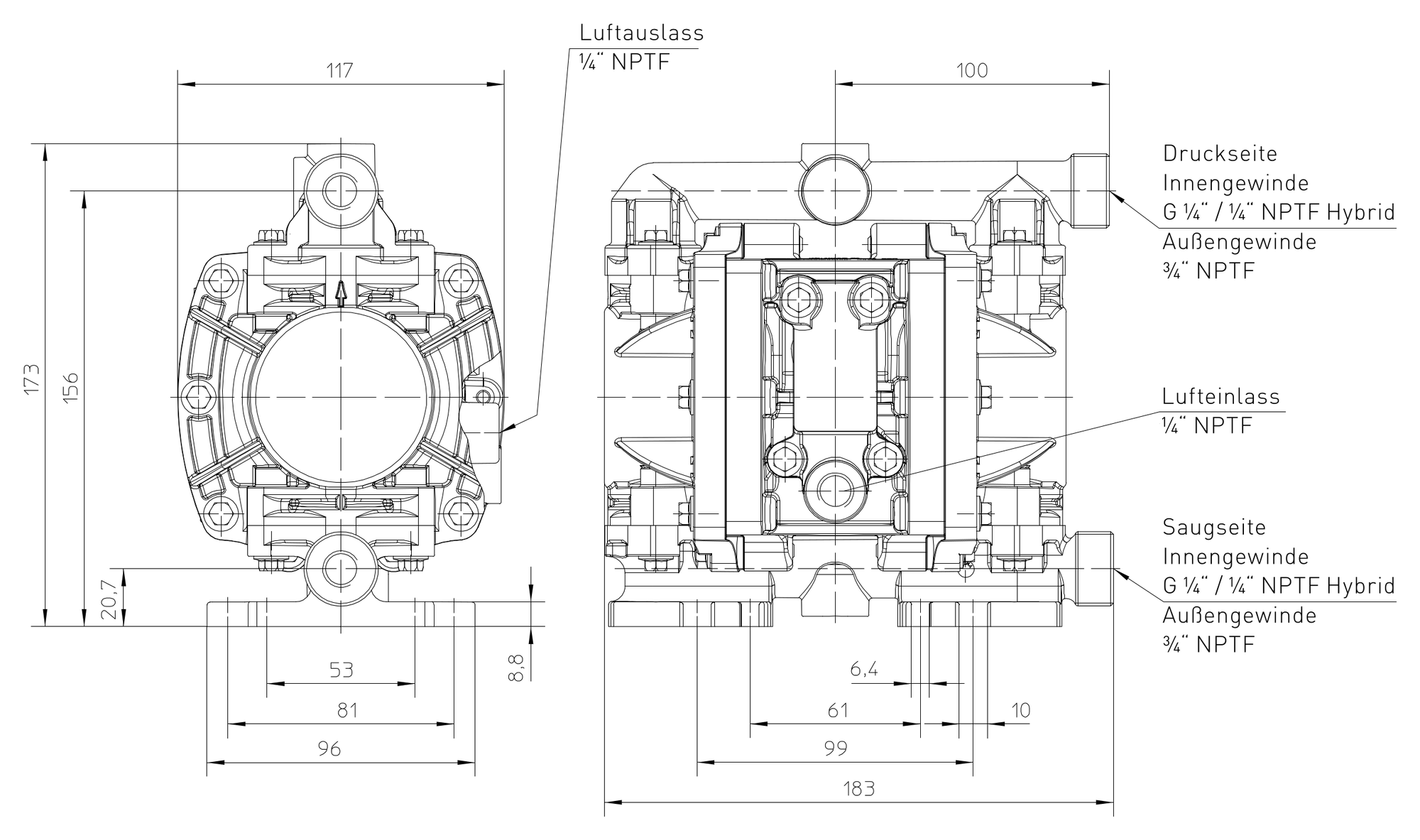

| Connection: Pressure port | 3/4 NPTF |
| Suction port connection | 1/4 NPTF, G 1/4 |
| Application range | Ex |
1 Depends on pump model, operating pressure, and fluid2
Depends on the fluid’s flow characteristics
