MAGSON MML & MMT

Stainless steel magnetically centrifugal pumps

For applications involving higher pressure and temperature requirements.

  • Two performance ranges: MML up to 500 l/min, MMT up to 80 m delivery head
  • Hermetically sealed: Magnetic coupling without dynamic shaft seal
  • up to 300 °C: Maximum fluid temperature for the MMT, depending on the model
Request a consultation or a quote View Accessories

Hermetically sealed

Magnetic coupling without a dynamic shaft seal

Low-maintenance

No mechanical seal that needs to be replaced regularly.

Resistant to pressure and temperature

Metal versions for process conditions that exceed the typical limits of plastics.

Flexibly designed

Materials, motors, and connections tailored to the application.

Quick Selection

Which stainless steel pump is right for your operating conditions?

The design matters: The MML model handles higher flow rates. The MMT model achieves high discharge heads at low flow rates and can handle gas-laden fluids.

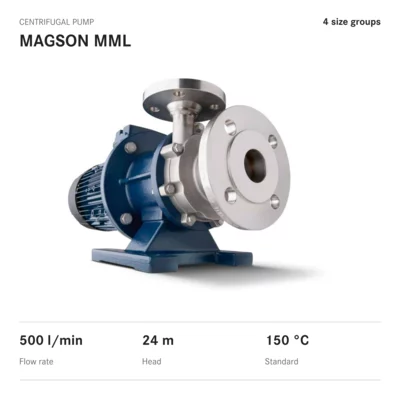

MAGSON MML

For continuous process conveyance at higher flow rates, as well as at elevated temperatures and system pressures.

  • Flow rate: 500 l/min
  • Head: 24 m
  • Fluid temperature: 150 °C
MML in Detail

MAGSON MMT

For low flow rates at high heads of up to 80 m, gas-saturated liquids, as well as mixing and high-temperature processes.

  • Flow rate: 10 m³/h
  • Head: 80 m
  • Temperature: maximum 300 °C
MMT in Detail

Material Selection

When to Use Stainless Steel Instead of Plastic?

MAGSON metal pumps are used when temperature, pressure, or specific material requirements preclude the use of plastic.

  • Corrosive media at elevated temperatures
  • Processes with elevated system pressure
  • Fluids with special metallurgical requirements
  • Crystallizing or gas-laden liquids
  • Chemical, pharmaceutical, food, laboratory, and cooling processes
Have the application reviewed

Higher flow rates

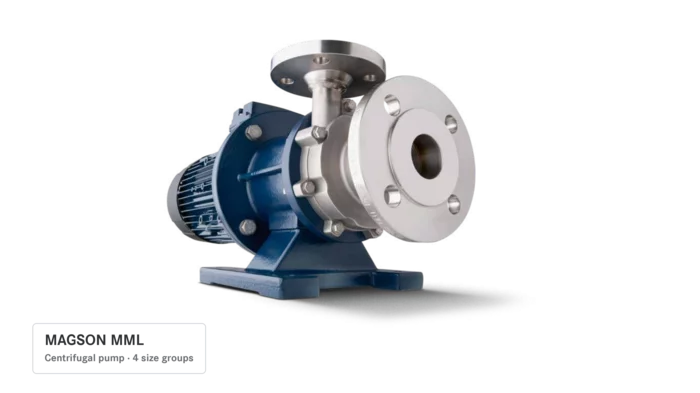

MAGSON MML

The normal-suction MML combines a seal-less drive concept with an efficient spiral casing. Four model variants cover operating points up to 500 l/min and a head of 24 m.

  • Stainless steel 1.4408 / AISI 316L as standard
  • Up to 150 °C in the standard version
  • System pressure:
    • BG1–BG3 16 bar,
    • BG4 15 bar; optional 25 bar
  • IEC-standard motors and variable-frequency drive operation
  • ATEX version available
Technical Specifications, Performance Curves, and Dimensions

Small volumes, high discharge heights

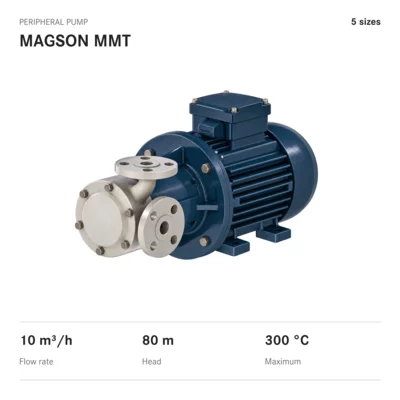

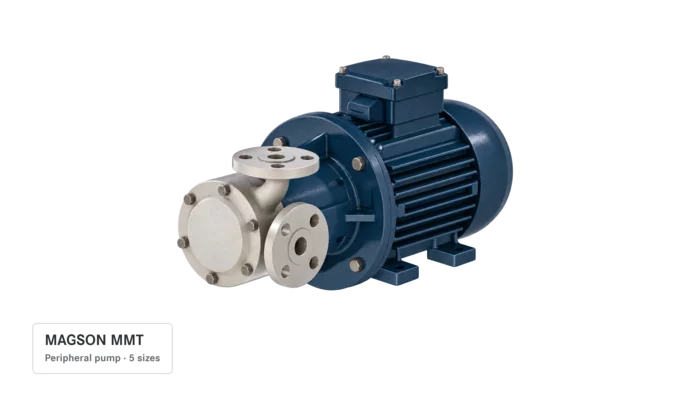

MAGSON MMT

The MMT is a magnetically coupled peripheral impeller pump. Its steep performance curve makes it easy to set the operating point and makes it particularly suitable for low flow rates and high heads.

  • Up to 10 m³/h and 80 m head
  • Up to 25 bar and 300 °C
  • Can handle gas content up to 20%
  • Standard or API configuration
  • ATEX versions available upon request
Technical Specifications, Performance Curves, and Dimensions

MML and MMT at a glance

Maximum values are for preliminary selection purposes. The actual operating point depends on the size, motorisation, medium and model.

Criterion

 MAGSON MML MAGSON MMT


Pump principle

 Non-self-priming centrifugal pump Peripheral wheel pump

Focus of interpretation

 Higher flow rates Small volumes, high delivery heads

Max. flow rate

 500 l/min up to approx. 167 l/min (2-pole motor)

Max. delivery head

 24 m 80 m with a 2-pole motor

Max. temperature

 150 °C as standard; higher temperatures are possible 300 °C

System pressure

 BG1–BG3: 16 bar; BG4: 15 bar; optional 25 bar up to 25 bar

Associated gas production

 No key selection criterion up to 20 % gas content

Standard material

 Stainless steel 1.4408 / AISI 316L AISI 316L stainless steel
  Enquire about MAGSON MML Enquire about MAGSON MMT



Pump Sizing Consultation

The medium, concentration, temperature, and operating point determine the pump design. FLUX provides support in selecting materials and pumps.

Request a No-Obligation Consultation

Technical Specifications and Dimensions: MAGSON MML

Select the assembly for performance data, motor variants and mounting dimensions. The flow rate specifications apply at 50 Hz.

Technical Specifications for the MAGSON MML BG1
Size 5/75 6/80 8/100
Material Stainless steel 1.4408 (CF8M/AISI 316L)
Max. Head [mWS] · 50 Hz 5 6 8
Max. flow rate [l/min] · 50 Hz 75 80 100
Max. density [g/cm³] · 50 Hz * 2 3 1.9 2.8 1.6 2.3
Engine power [kW] 0.37 0.55 0.37 0.55 0.37 0.55
Rated current (400 V, 50 Hz) [A] ** 0.96 1.41 0.96 1.41 0.96 1.41
Rated speed [rpm] · 50 Hz 3000
Suction-side connection DN 25
Discharge connection DN 20
Voltage [V] *** 230/400
Protection Class IP55
Max. Flow Velocity [m/s] Suction side 1 / discharge side 3
Max. system pressure [bar] 16 / optional 25
Max. temperature [°C] 150

* Approx. at maximum flow rate; higher flow rates possible by throttling.
** Depends on the motor supplier.
*** Other voltages available upon request.

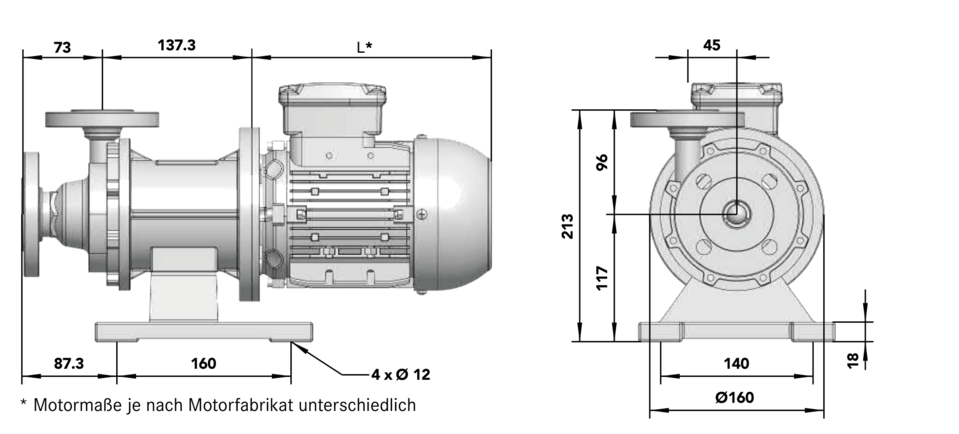

Dimensions of MAGSON MML BG1 [mm]
Measure Connection piece DIN EN 1092-1 Engine length
suction connector pressure connector 0,37 kW 0,55 kW
Measure A 85 75 — —
Measure C 68 58 — —
Measure D 115 105 — —
Measure DN 25 20 — —
Measure L* — — 196 226
Measure Z 14 14 — —

* Engine dimensions vary depending on the make of engine.

* Engine dimensions vary depending on the engine make

Technical Specifications for the MAGSON MML BG2
Size 5/130 7/160 11/200
Material Stainless steel 1.4408 (CF8M/AISI 316L)
Max. Head [mWS] · 50 Hz 5 7 11
Max. flow rate [l/min] · 50 Hz 130 160 200
Max. density [g/cm³] · 50 Hz * 2 2.9 1.2 1.8 1.2 1.6
Engine power [kW] 0.75 1.1 0.75 1.1 1.1 1.5
Rated current (400 V, 50 Hz) [A] ** 1.56 2.25 1.56 2.25 2.25 3
Rated speed [rpm] · 50 Hz 3000
Suction-side connection DN 40
Discharge connection DN 25
Voltage [V] *** 230/400
Protection Class IP55
Max. flow velocity [m/s] Suction side 1 / discharge side 3
Max. system pressure [bar] 16 / optional 25
Max. temperature [°C] 150

* Approx. at maximum flow rate; higher flow rates possible by throttling.
** Depends on the motor supplier.
*** Other voltages available upon request.

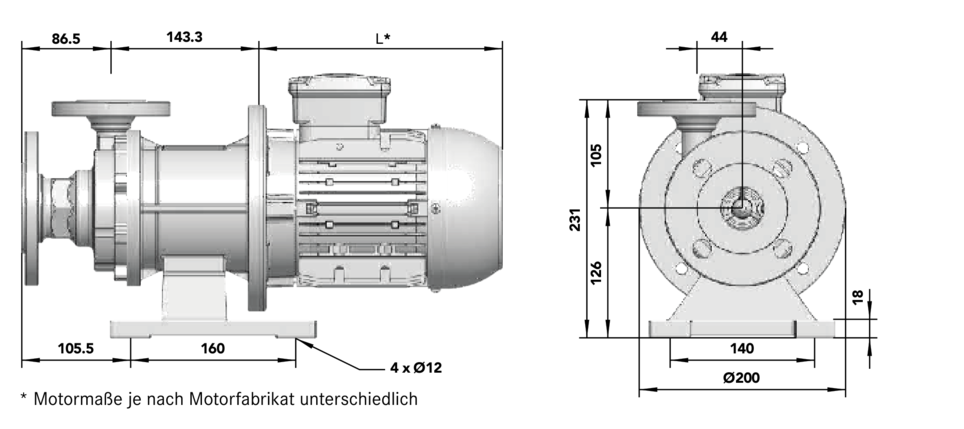

Dimensions of the MAGSON MML BG2 [mm]
Measure Connection piece DIN EN 1092-1 Engine length
suction connector pressure connector 0,75 kW 1,1 kW 1,5 kW
Measure A 110 85 — — —
Measure C 88 68 — — —
Measure D 150 115 — — —
Measure DN 40 25 — — —
Measure L* — — 252 287 298
Measure Z 18 14 — — —

* Engine dimensions vary depending on the engine make

Technical Specifications for MAGSON MML BG3
Size 12/260 15/340 19/400
Material Stainless steel 1.4408 (CF8M/AISI 316L)
Max. Head [mWS] · 50 Hz 11 15 19
Max. flow rate [l/min] · 50 Hz 260 340 400
Max. density [g/cm³] · 50 Hz * 1.6 2.3 1.1 1.6 1.2
Engine power [kW] 1.5 2.2 1.5 2.2 2.2
Rated current (400 V, 50 Hz) [A] ** 3 4.2 3 4.2 4.2
Rated speed [rpm] · 50 Hz 3000
Suction-side connection DN 40
Discharge connection DN 32
Voltage [V] *** 230/400
Protection Class IP55
Max. Flow Velocity [m/s] Suction side 1 / discharge side 3
Max. system pressure [bar] 16 / optional 25
Max. temperature [°C] 150

* Approx. at maximum flow rate; higher flow rates possible by throttling.
** Depends on the motor supplier.
*** Other voltages available upon request.

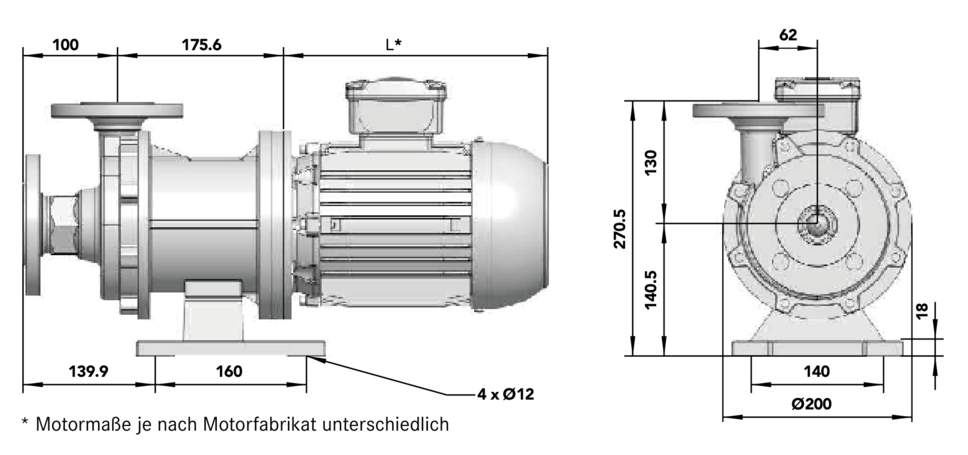

Dimensions of the MAGSON MML BG3 [mm]
Measure Connection piece DIN EN 1092-1 Engine length
suction connector pressure connector 1,5 kW 2,2 kW
Measure A 110 100 — —
Measure C 88 78 — —
Measure D 100 140 — —
Measure DN 40 32 — —

Measure L*

 — — 297 337
Measure Z 18 18 — —

* Engine dimensions vary depending on the engine make

Technical Specifications for the MAGSON MML BG4
Size 14/360 18/420 24/500
Material Stainless steel 1.4408 (CF8M/AISI 316L)
Max. Head [mWS] · 50 Hz 14 18 24
Max. flow rate [l/min] · 50 Hz 360 420 500
Max. density [g/cm³] · 50 Hz * 1.6 2 1.3 1.7 1.4 1.8
Engine power [kW] 2.2 3 2.2 3 3 4
Rated current (400 V, 50 Hz) [A] ** 4.2 5.6 4.2 5.6 5.6 7.6
Rated speed [rpm] · 50 Hz 3000
Suction-side connection DN 50
Discharge connection DN 40
Voltage [V] *** 230/400
Protection Class IP55
Max. Flow Velocity [m/s] Suction side 1 / discharge side 3
Max. system pressure [bar] 15 / optional 25
Max. Temperature [°C] 150

* Approx. at maximum flow rate; higher flow rates possible by throttling.
** Depends on the motor supplier.
*** Other voltages available upon request.

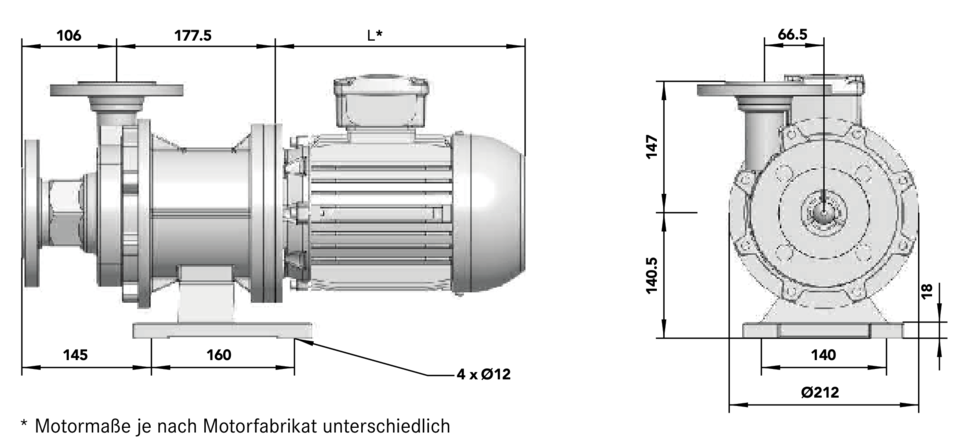

Dimensions of the MAGSON MML BG4 [mm]
Measure Connection piece DIN EN 1092-1 Engine length
suction connector pressure connector 2,2 kW 3 kW 4 kW
Measure A 125 110 — — —
Measure C 102 88 — — —
Measure D 165 100 — — —
Measure DN 50 40 — — —
Measure L* — — 337 371 354
Measure Z 18 18 — — —

* Engine dimensions vary depending on the engine make

Technical Specifications and Dimensions: MAGSON MMT

Power ratings, connections, motor variants and installation dimensions for the five MMT sizes.

MAGSON MMT Technical Specifications
Criterion 2-pole motor 4-pole motor
Max. flow rate [m³/h] 10 5
Max. head [m] 80 25
Max. Permissible Pressure [bar] 25 25
Max. permissible temperature [°C] 300 300
Pressure-side connection ½″ to 1″ ½″ to 1″
Gas Conveyance up to 20% up to 20%

The operating point must be determined based on the respective performance curve. Standard material: AISI 316L stainless steel; Incoloy 825 and Hastelloy C available upon request.

Sizes, Connections, and Motors
Size Suction and discharge connections DN / inches "Gas" thread, suction/discharge side IEC Size · B3 Motor power, 2-pole [kW] Motor power, 4-pole [kW]
1.5 × 6 DN 15 / ½″ ½″ 71 0.55 0.37
2 × 7 DN 20 / ¾″ ¾″ 80 1.1 0.75
2.5 × 8 DN 25 / 1″ 1″ 90 2.2 1.5
2.5 × 8.5 DN 25 / 1″ 1″ 100 — 2.2
2.5 × 8.5 DN 25 / 1″ 1″ 112 4 —
2.5 × 9 DN 25 / 1″ 1″ 100 — 2.2
2.5 × 9 DN 25 / 1″ 1″ 132 5.5 —



Main dimensions & flange connection MAGSON MMT [mm]

Performance curves
MAGSON MML and MMT

Selected illustrations from the existing catalogues.

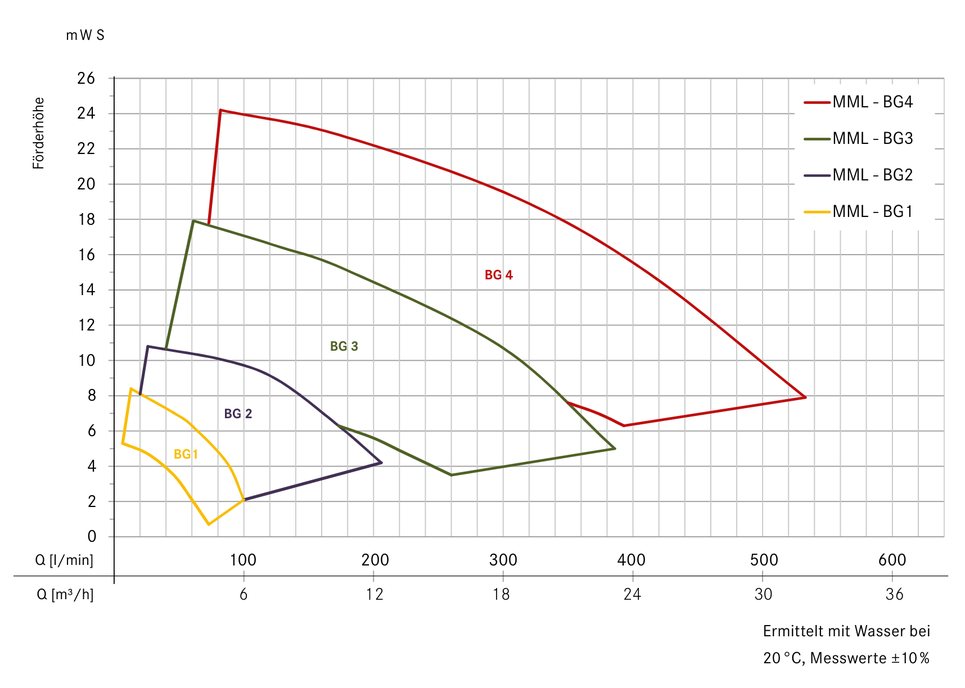

MAGSON MML Performance at a Glance

Performance Curves for MAGSON MML BG1

Performance Curves for MAGSON MML BG2

Performance Curves for MAGSON MML BG3

Performance Curves for MAGSON MML BG4

Performance Curves for MAGSON MMT 1.5 × 6

Performance Curves for MAGSON MMT 2.5 × 7

Performance Curves for MAGSON MMT 2.5 × 8

Performance Curves for MAGSON MMT 2.5 × 8.5

Performance Curves for MAGSON MMT 2.5 × 9

Accessories for MAGSON

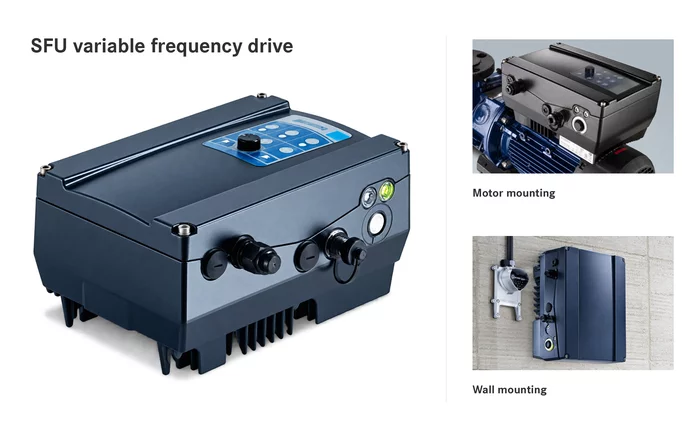

SFU Frequency Converter
