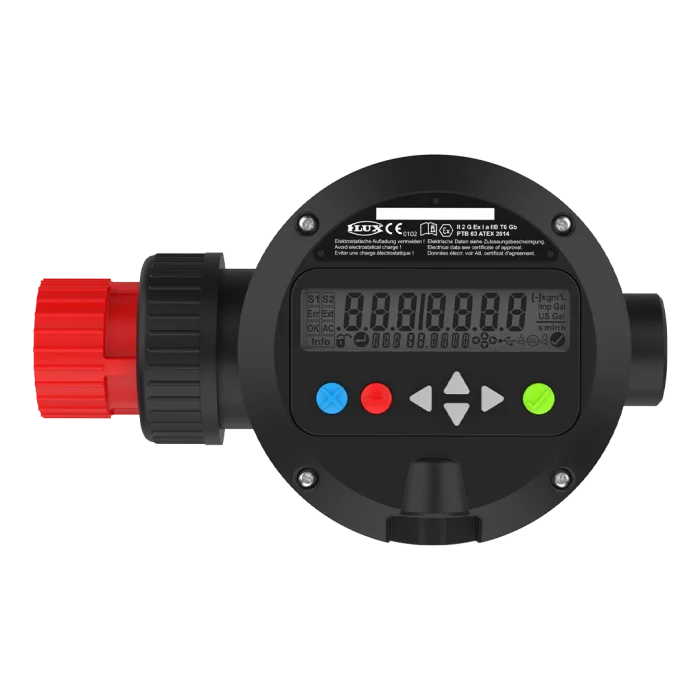

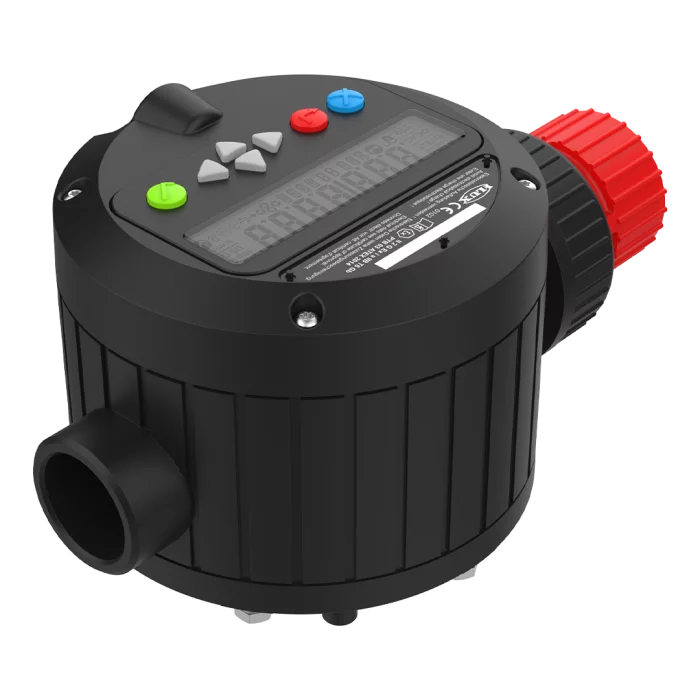

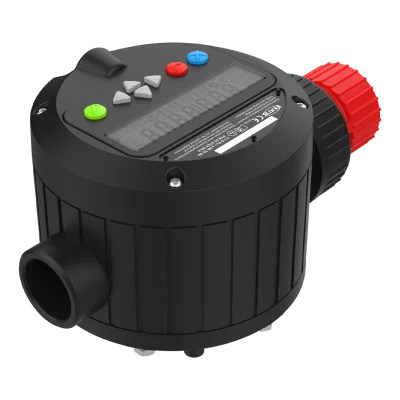

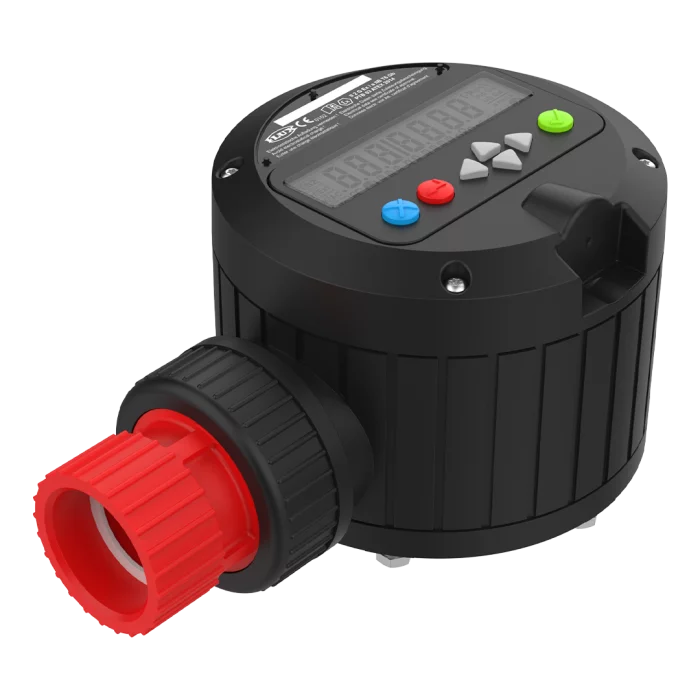

FMJ 100 PP flowmeter
FMJ 100/PP/1/F | FKM
Item no. 10-A0400088
Nutating disc flowmeter, for use with drum pumps, made from stainless steel, FKM seal.
Go to product details
- Weight:
- 1.191 kg
- for use in haz. area:
- no
- material:
- Polypropylene
- material seal:
- FKM
- Special feature:
- Made in Germany
Product details
The FLUX FMJ 100 flowmeter, constructed in accordance with the nutating disc principle, can be used with FLUX drum pumps, for example. The filled quantity can be displayed using the FLUXTRONIC® evaluation electronics. Filling and metering processes for virtually all media can therefore be performed with maximum precision and the greatest possible safety. Polypropylene (PP) version. The O-ring is made out of FKM.
- Not affected by small solids
- Simple handling
- Easy to mount on pump
- Also for media that is not self-lubricating
| Feature | Value |
|---|---|
| Gewicht | 1.191 kg |
| connection outlet | External thread G 1 1/4" |
| Ex-marking | without |
| for use in haz. area | no |
| FDA approval | no |
| FOOD approval | no |
| material seal | FKM |
| material | Polypropylene |
| viscosity max. | 2500 mPas |
| protection class | IP 54 |
| ambient temp. max. | 40 °C |
| ambient temp min. | -20 °C |
| usage for | F 400 series |
| medium temp. max. | 65 °C |
| customized product | without |
| batch process poss. | no |
| Suction side | internal thread G 1 1/4" |
| Durchfl.-Ber. <5mPas | 10-100 l/min |
| Durchfl.-Ber.>5mPas | 10-100 l/min |
| material axle | without |
| mat. measur. chamber | PPS |
| material oval wheels | without |
| measurement accuracy | ±1 % |
| measurem. repeatab. | 0,00 % |
| measurement | nutating disc |
| other flow meter | without |
| max. pressure | 4 bar |
| pulses per litre | 20 |
| sensor optional | without |
| sensor standard | 1x Reed-Sensor |
| size flow meter | size 100 |
| mx.med.-te.i.haz.-a. | without °C |
| medium temp. min. | 0 °C |
| type flow meter | FMJ |
| version | with evaluation electronic FLUXTRONIC® |
| viscosity min. | 1 mPas |
| flra<5 | 10-100 l/min |
| flra>5 | 10-100 l/min |
| Category | flowmeter |
