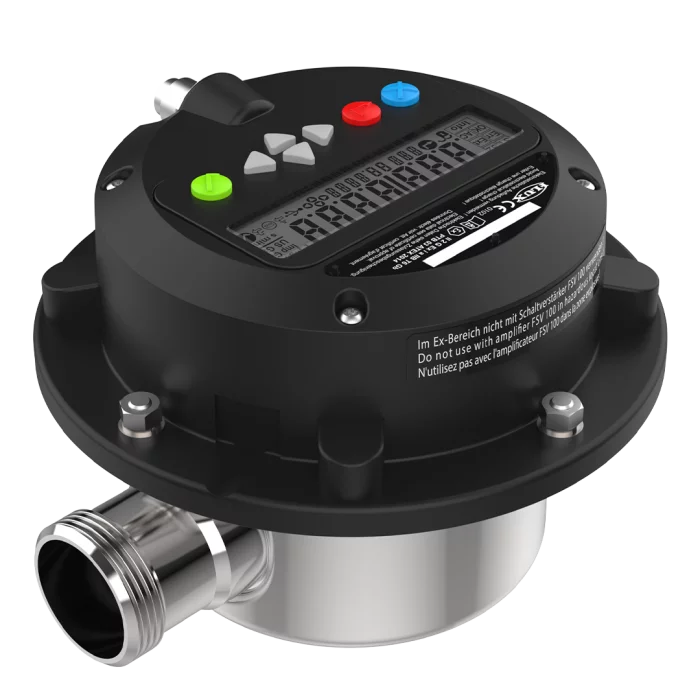

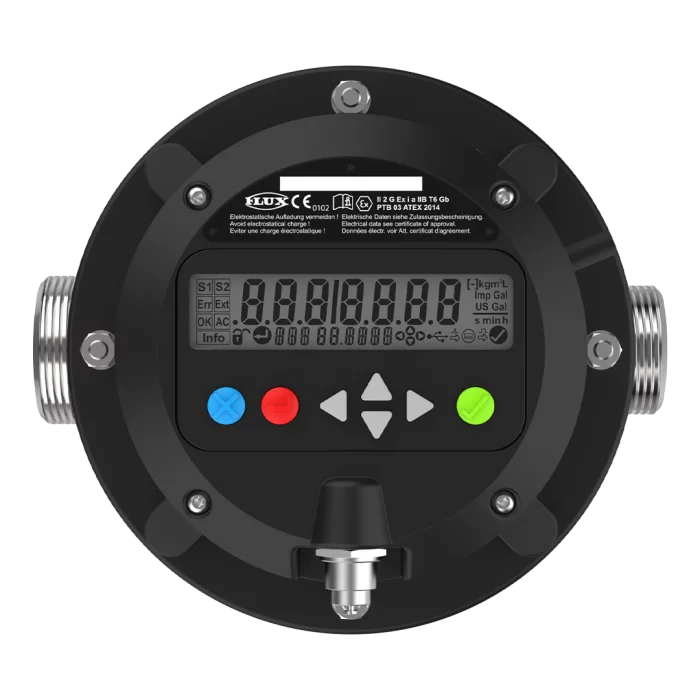

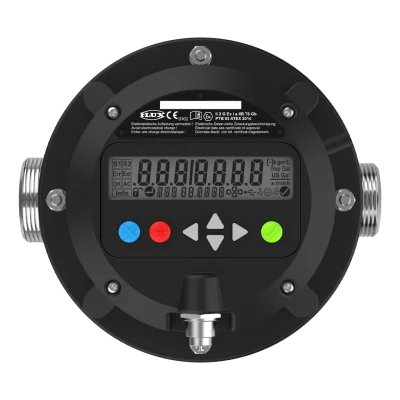

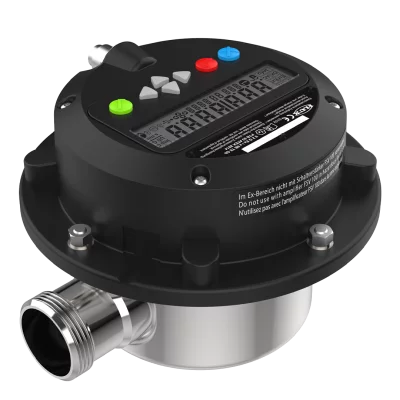

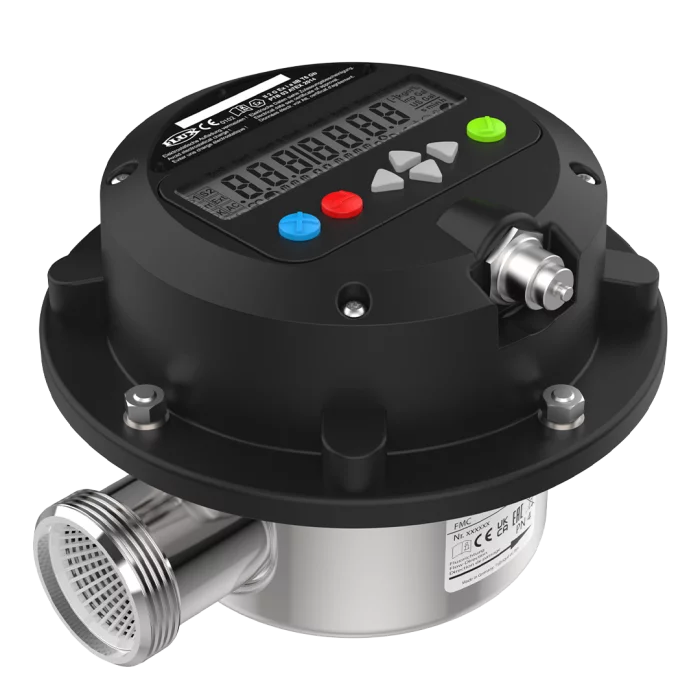

FMC 100 S flowmeter
FMC 100/S/1/F | FKM
Item no. 10-A0400031
Nutating disc flowmeter, for use with drum pumps, made from stainless steel, FKM seal.
Go to product details
- Weight:
- 1.881 kg
- for use in haz. area:
- yes
- material:
- Stainless steel
- material seal:
- FKM
- Special feature:
- Made in Germany
Product details
The FLUX FMC 100 flowmeter, constructed in accordance with the nutating disc principle, is designed for use with FLUX drum pumps. In combination with FLUXTRONIC® evaluation electronics, filling and metering processes for virtually all fluids can be performed with maximum precision and the greatest possible safety. In automatic mode, thanks to the FLUXTRONIC® evaluation electronics and use of a switched-mode amplifier, signals can be issued for control purposes. The motor and/or solenoid valves can therefore be controlled and a whole host of processes can be managed, for example. Stainless steel (S) version. The O-ring is made out of FKM.
- Not affected by small solids
- Simple handling
- Can be controlled by a PLC
- Can also be used in areas subject to explosion hazards
- Easy to mount on pump
- Batch mode possible
- Also for media that is not self-lubricating
| Feature | Value |
|---|---|
| Gewicht | 1.881 kg |
| connection outlet | External thread G 1 1/4" |
| Ex-marking | Ex II 2G Ex ia IIB T6 Gb |
| for use in haz. area | yes |
| FDA approval | no |
| FOOD approval | no |
| material seal | FKM |
| material | Stainless steel |
| viscosity max. | 2500 mPas |
| protection class | IP 54 |
| ambient temp. max. | 40 °C |
| ambient temp min. | -20 °C |
| usage for | F 400 series |
| medium temp. max. | 80 °C |
| customized product | without |
| batch process poss. | yes, in conjunction with an interface amplifier |
| Suction side | External thread G 1 1/2" |
| Durchfl.-Ber. <5mPas | 10-100 l/min |
| Durchfl.-Ber.>5mPas | 10-100 l/min |
| material axle | without |
| mat. measur. chamber | PPS |
| material oval wheels | without |
| measurement accuracy | ±1 % |
| measurem. repeatab. | ±0,15 % |
| measurement | nutating disc |
| other flow meter | without |
| max. pressure | 6,0 bar |
| pulses per litre | 20 |
| sensor optional | without |
| sensor standard | 1x Reed-Sensor |
| size flow meter | size 100 |
| mx.med.-te.i.haz.-a. | 40 °C |
| medium temp. min. | 0 °C |
| type flow meter | FMC |
| version | with evaluation electronic FLUXTRONIC® |
| viscosity min. | 1 mPas |
| flra<5 | 10-100 l/min |
| flra>5 | 10-100 l/min |
| Category | flowmeter |
