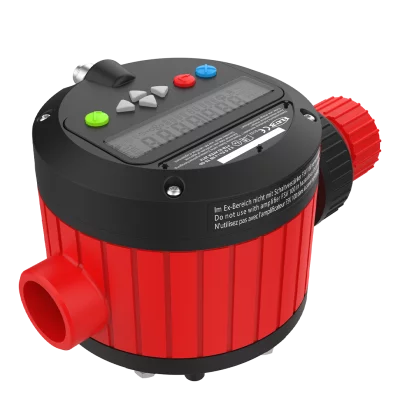

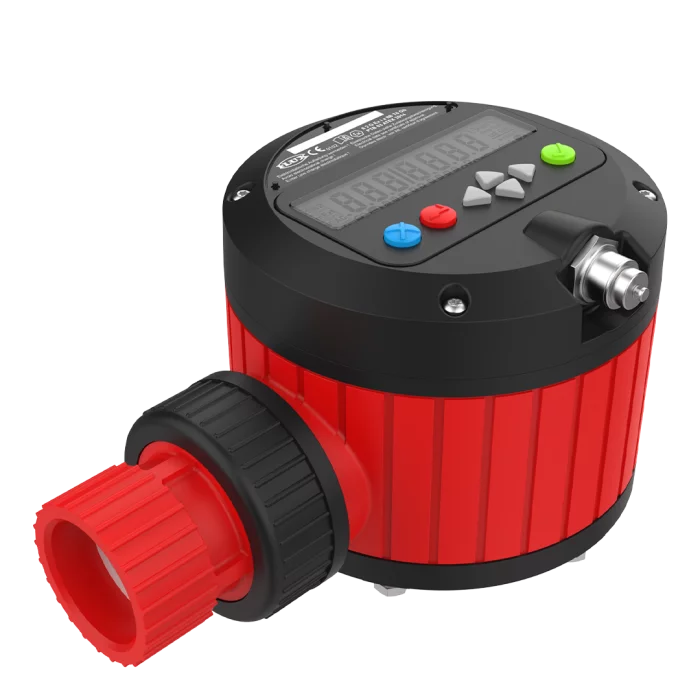

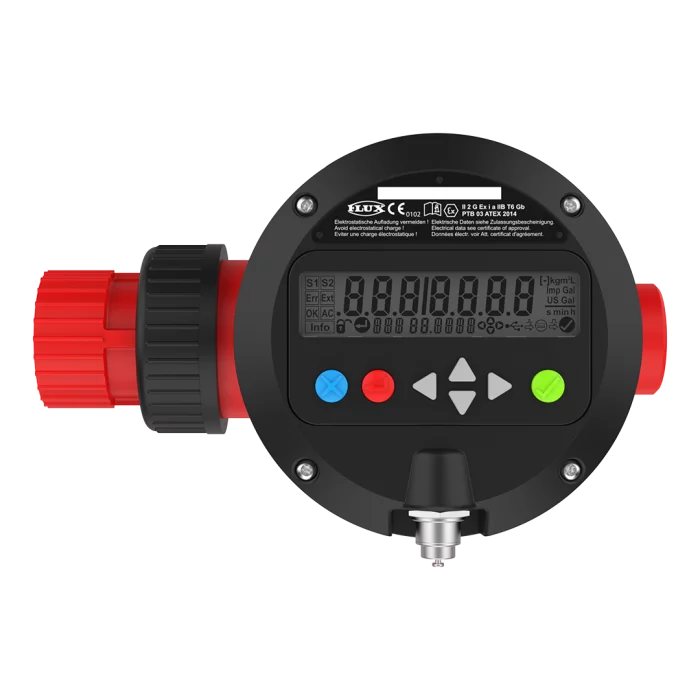

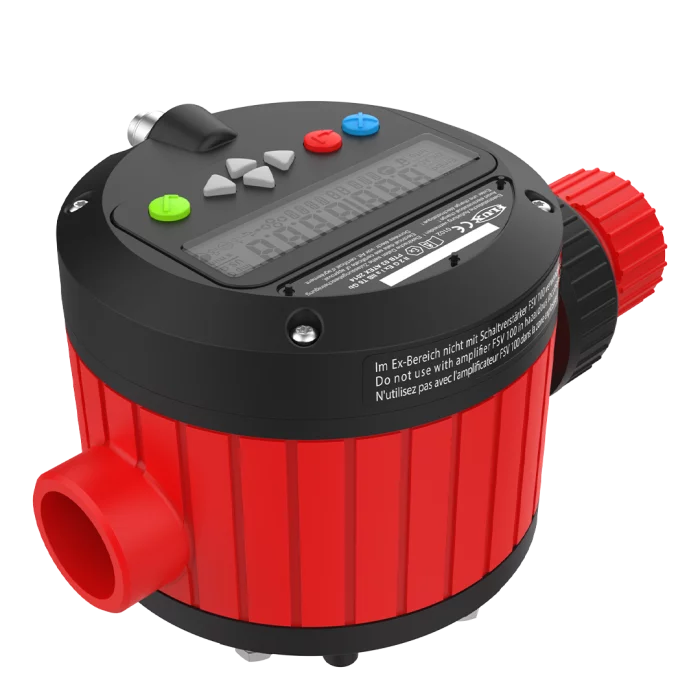

FMC 100 PP flowmeter
FMC 100/PP/1/F | FKM
Item no. 10-A0400007
Nutating disc flowmeter, for use with drum pumps, made from polypropylene, FKM seal.
Go to product details
- Weight:
- 1.285 kg
- for use in haz. area:
- yes
- material:
- Polypropylene
- material seal:
- FKM
- Special feature:
- Made in Germany
Product details
The FLUX FMC 100 flowmeter, constructed in accordance with the nutating disc principle, is designed for use with FLUX drum pumps or for stationary use, e.g. in pipework systems. In combination with FLUXTRONIC® evaluation electronics, filling and metering processes for virtually all fluids can be performed with maximum precision and the greatest possible safety. In automatic mode, thanks to the FLUXTRONIC® evaluation electronics and use of a switched-mode amplifier, signals can be issued for control purposes. The motor and/or solenoid valves can therefore be controlled and a whole host of processes can be managed, for example. Polypropylene (PP) version. The O-ring is made out of FKM.
- Not affected by small solids
- Simple handling
- Can be controlled by a PLC
- Can also be used in areas subject to explosion hazards
- Easy to mount on pump
- Batch mode possible
- Also for media that is not self-lubricating
| Feature | Value |
|---|---|
| Gewicht | 1.285 kg |
| connection outlet | External thread G 1 1/4" |
| Ex-marking | Ex II 2G Ex ia IIB T6 Gb |
| for use in haz. area | yes |
| FDA approval | no |
| FOOD approval | no |
| material seal | FKM |
| material | Polypropylene |
| viscosity max. | 2500 mPas |
| protection class | IP 54 |
| ambient temp. max. | 40 °C |
| ambient temp min. | -20 °C |
| usage for | F 400 series |
| medium temp. max. | 60 °C |
| customized product | without |
| batch process poss. | yes, in conjunction with an interface amplifier |
| Suction side | internal thread G 1 1/4" |
| Durchfl.-Ber. <5mPas | 10-100 l/min |
| Durchfl.-Ber.>5mPas | 10-100 l/min |
| material axle | without |
| mat. measur. chamber | PPS |
| material oval wheels | without |
| measurement accuracy | ±1 % |
| measurem. repeatab. | ±0,15 % |
| measurement | nutating disc |
| other flow meter | without |
| max. pressure | 4 bar |
| pulses per litre | 20 |
| sensor optional | without |
| sensor standard | 1x Reed-Sensor |
| size flow meter | size 100 |
| mx.med.-te.i.haz.-a. | 40 °C |
| medium temp. min. | 0 °C |
| type flow meter | FMC |
| version | with evaluation electronic FLUXTRONIC® |
| viscosity min. | 1 mPas |
| flra<5 | 10-100 l/min |
| flra>5 | 10-100 l/min |
| Category | flowmeter |
