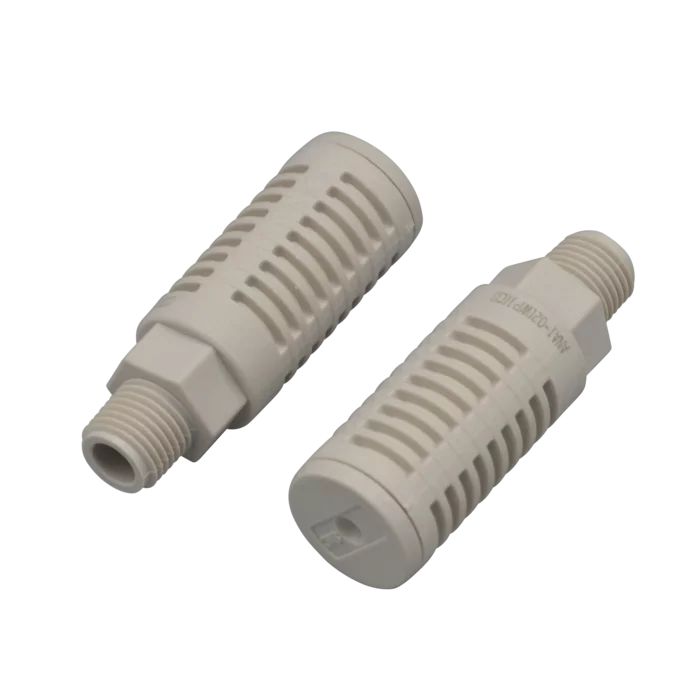

Silencer G 1/4
Silencer G 1/4
Item no. 10-94715006
- Weight:
- 0.014 kg
| Feature | Value |
|---|---|
| Gewicht | 0.014 kg |
| Outer diameter | 22 mm |
| for use in haz. area | no |
| material housing | polybutylene terephthalate |
| length | 64 mm |
| Suction side | External thread G 1/4" |
| max. pressure | 10,0 bar |
| flow rate c. air max | 20 l/s |
| width across flats | 18 mm |
| colour | grey |
| other silencer | without |
| temperature max. | 60 °C |
| temperature min. | 5 °C |
| Category | Silencer |
