Earth wire Ex

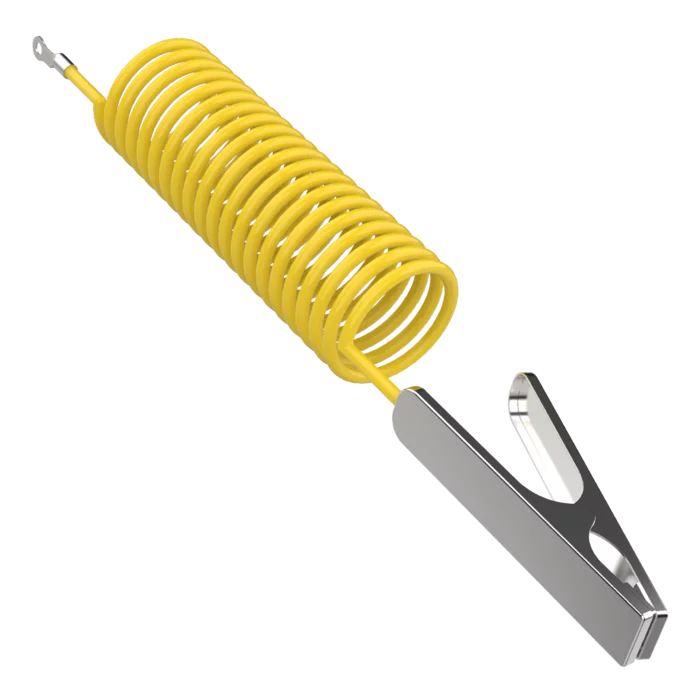

Earth cable with earth clamp
Item no. 10-93190023
4 m spiral cable, 3 mm² cable cross-section.
Go to product details
- Weight:
- 0.581 kg
Product details
Stainless steel clamp with teeth made from tungsten carbide. For drum and container pumps with explosion protection and as an accessory for F 416 Ex compressed air motors, F 460 Ex and FBM 4000 Ex motors as well as three-phase motors and compressed air diaphragm pumps of the FDM series with explosion protection.
| Feature | Value |
|---|---|
| Gewicht | 0.581 kg |
| Ex-marking | Ex II 1GD T6 |
| for use in haz. area | yes |
| wire cross-section | 3,00 mm² |
| cable length | 4,00 m |
| Cable type | spiral cable |
| colour | yellow |
| connection side 1 | crocodile clip |
| connection side 2 | crimp type socket with eyelet Ø 5,5-6mm |
| Category | earth ground wire |
Media
The media listed below are intended as guidance for common applications. Other media can also be pumped – please contact our customer service for further information.
- Acetone, 10%, 20 °C
- Acetone, 10%, 40 °C
- Acetone, 100%, 20 °C
- Acetone, 100%, 40 °C
- Allyl alcohol, 96%, 20 °C
- Allyl alcohol, 96%, 40 °C
- Formic acid, 85%, 20 °C
- Formic acid, 85%, 40 °C
- Amyl acetate, 100%, 20 °C
- Amyl acetate, 100%, 40 °C
- Amyl alcohol, 100%, 20 °C
- Amyl alcohol, 100%, 40 °C
- Benzine, 100%, 20 °C
- Benzine, 100%, 40 °C
- Benzole, 100%, 20 °C
- Butanol, 100%, 20 °C
- Butanol, 100%, 40 °C
- Butanone (MEK), 100%, 20 °C
- Butanone (MEK), 100%, 40 °C
- Butyl acetate, 100%, 20 °C
- Butyl alcohol, 100%, 20 °C
- Butyl alcohol, 100%, 40 °C
- Acetic acid, 100%, 20-40 °C
- Ethanol, 100%, 20 °C
- Ethanol, 100%, 40 °C
- Ether, 100%, 20 °C
- Essential oils, 100%, 20 °C
- Essential oils, 100%, 40 °C
- Ethyl acetate, 100%, 20-40 °C
- Ethylbenzene, 100%, 20-40 °C
- Ethyl chloroacetate, 100%, 20-40 °C
- Ethyl glycol, 100%, 20-40 °C
- Hydrazine, 100%, 20 °C
- Hydrazine, 100%, 40 °C
- Isobutyl alcohol, 100%, 20-40 °C
- Isopropanol, 100%, 20-40 °C
- Isopropyl acetate, 100%, 20 °C
- Methanol, 100%, 20-40 °C
- Methyl acetate, 100%, 20-40 °C
- Methyl glycol, 100%, 20-40 °C
- Petroleum, 100%, 20 °C
- Petroleum, 100%, 40 °C
- Propanol, 100%, 20-40 °C
- Propionic acid, 50%, 20-40 °C
- Propionic acid, 100%, 20-40 °C
- Carbon disulphide, 100%, 20 °C
- Carbon disulphide, 100%, 40 °C
- Styrol, 100%, 20 °C
- Toluene, 100%, 20-40 °C
- Xylene, 100%, 20 °C
- Xylene, 100%, 40 °C
