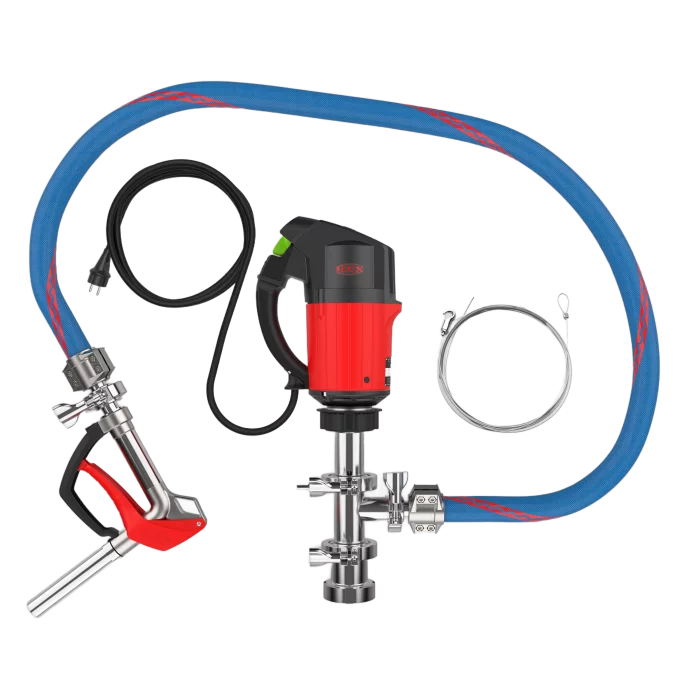

MINIFLUX Sanitary pump kit
MINIFLUX Sanitary & F 458 230-240V/50-60Hz
Item no. 10-45829000
EAN: 4260387214377
Compact pump kit for hygienic transfer from IBCs and containers with a bottom outlet. The MINIFLUX Sanitary can be dismantled without tools and is easy to clean. Equipped with an F 458 commutator motor for 230–240 V.
Go to product details
- Weight:
- 11.1 kg
- motor type:
- F 458
- supply voltage:
- 230-240 V
- material:
- Stainless steel
- for use in haz. area:
- no
- Special feature:
- Made in Germany
Product details

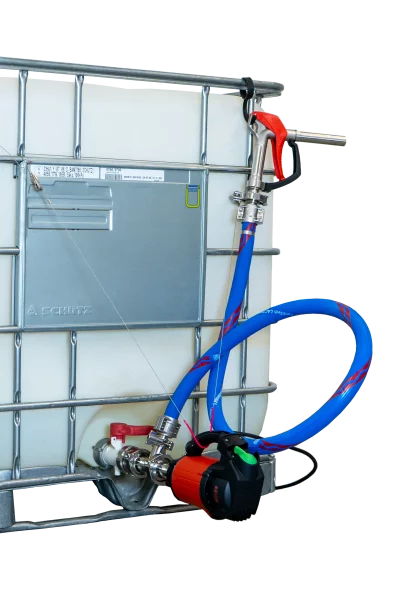

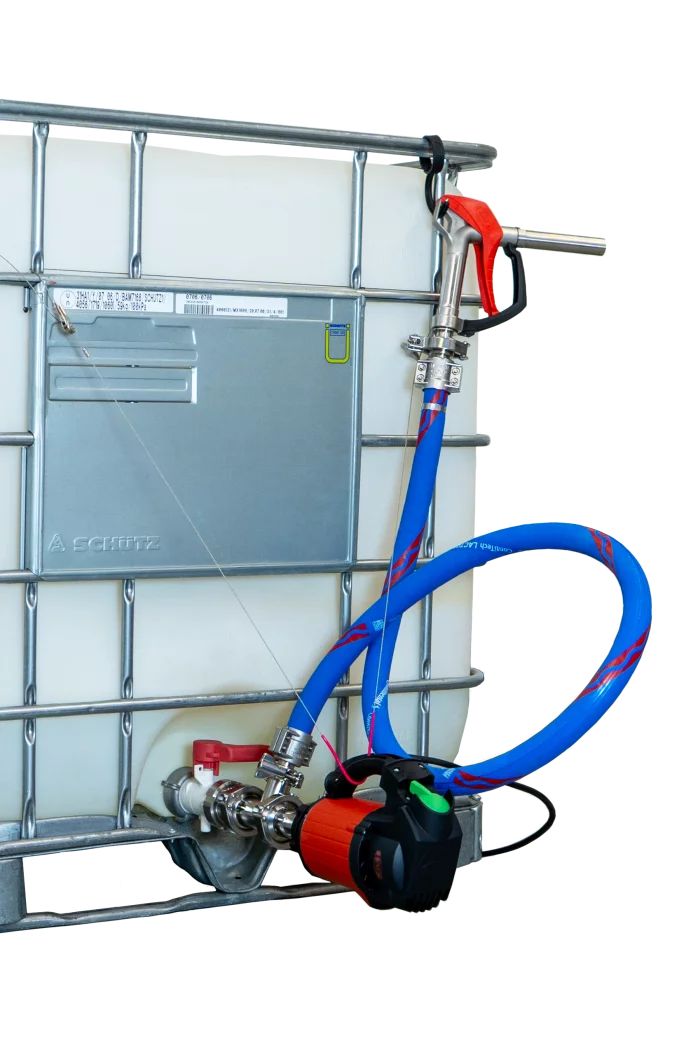

The MINIFLUX Sanitary pump kit with F 458 motor is suitable for transferring and emptying media from IBCs and other containers with a bottom outlet. Its compact, horizontal design makes the system particularly suitable when the container cannot be accessed from above or is only accessible with considerable effort, or when the natural outlet pressure is insufficient for fast transfer.
The MINIFLUX Sanitary was developed for applications with high hygiene requirements. It is FDA-compliant and suitable for contact with food in accordance with EC 1935/2004. The pump can be dismantled quickly and without tools, simplifying cleaning and maintenance. Its low-dead-space design and the absence of lubricated seals reduce the risk of contaminating the pumped medium.
The F 458 commutator motor with an operating voltage of 230–240 V provides reliable pump operation. The kit is suitable, among other applications, for fast filling and for transferring media into containers positioned at a higher level.
| Feature | Value |
|---|---|
| Gewicht | 11.1 kg |
| for use in haz. area | no |
| FDA approval | CFR 21 |
| max. flow rate | 240 l/min |
| FOOD approval | EC 1935/2004 |
| immersion length | without mm |
| max. discharge head | 13 mWs |
| material impeller | stainless steel |
| material seal | FKM |
| material | Stainless steel |
| material shaft | stainless steel |
| mechanical seal | without |
| viscosity max. | 1000 mPas |
| cooling | external ventilated |
| rated output | 0,46 kW |
| protection class | IP 55 |
| speed control | no |
| supply voltage | 230-240 V |
| motor type | F 458 |
| type drum pump | F 430 |
| cable length | 5,00 m |
| frequency | 50-60 Hz |
| type plug | CEE 7/7-plug |
| undervoltage prot. | yes |
| Suction side | union nut S60 x 6 |
| Ø outlet spout | 28 mm |
| outer diameter | 37 mm |
| hose length from | 2,0 m |
| nominal diameter | DN 25 mm |
| type hose line | food hose |
| material seal | PTFE |
| material | stainless steel |
| Hand nozzles | technical data |
| Inliner | no |
| material inside | NBR white |
| swivelling | yes |
| base part | without mm |
| dry installation | yes |
| Ex-marking | without |
