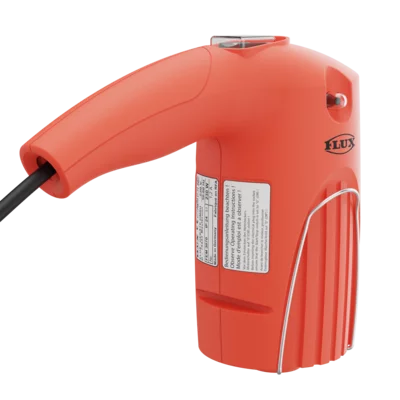

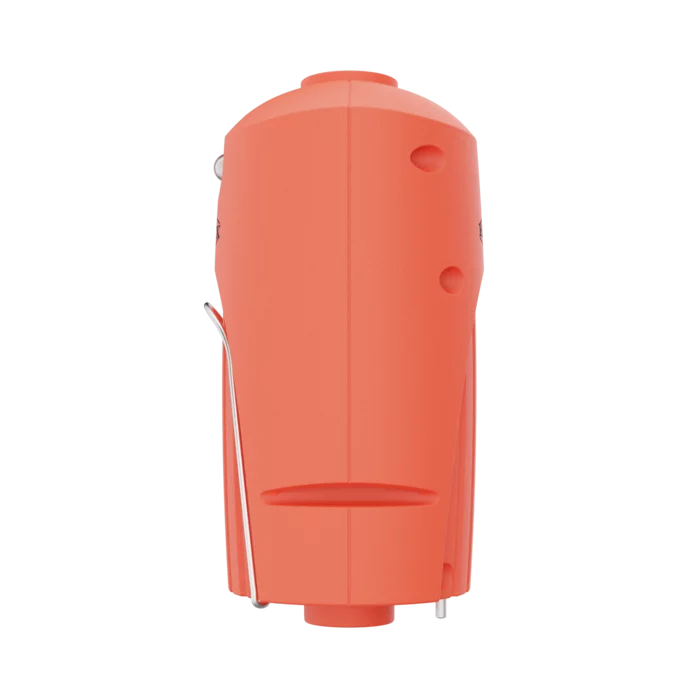

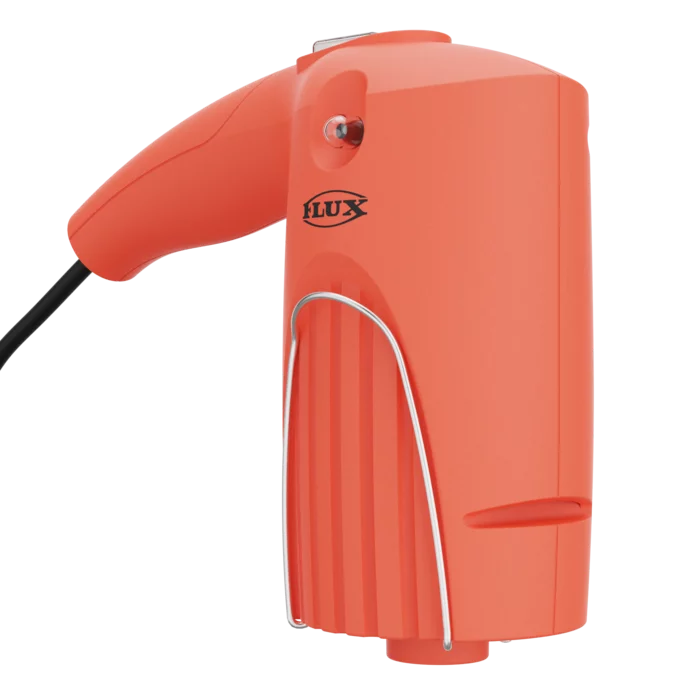

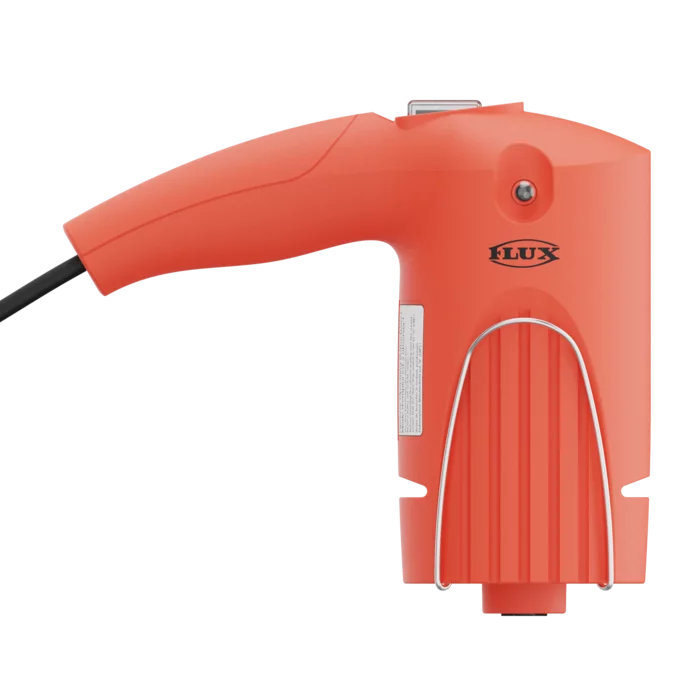

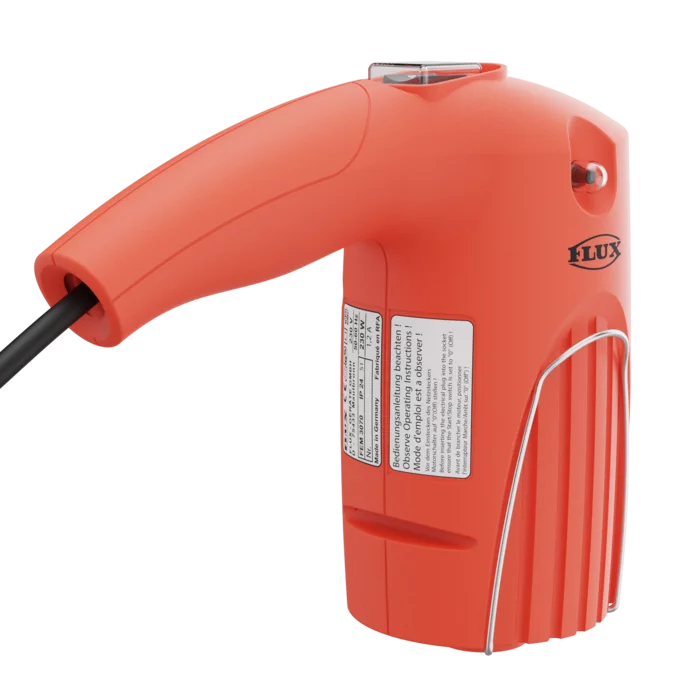

FEM 3070 commutator motor
FEM 3070 | 230 W | 120 V | 60 Hz
Item no. 10-30701002
suitable for COMBIFLUX FP 314, 120 V / 60 Hz (USA).
Go to product details
- Weight:
- 1.633 kg
- for use in haz. area:
- no
- rated output:
- 0,23 kW
- supply voltage:
- 120 V
- version motor:
- commutator motor
Product details
The FEM 3070 commutator motor with internal ventilation and mains connection has an ergonomic handle for simple one-handed operation. The quick coupler allows the motor and pump to be connected with ease. Thanks to the mains connection, a very long operating period is possible and the overload safety switch provides good operational safety. Its low weight means that minimal effort is required when changing drums. What’s more, it takes up little space in storage. The motor is also suited to filling smaller quantities.
- With mains connection
- Also for filling smaller quantities
- Low total weight
- Quick coupler connects motor and pump
| Feature | Value |
|---|---|
| Gewicht | 1.633 kg |
| Ex-marking | without |
| for use in haz. area | no |
| con. motor/pump | clamping lever |
| cooling | internal ventilated |
| material housing | polyamide |
| nominal torque | 0,15 |
| nominal current | 2,40 A |
| nominal speed | 9500 U/min | rpm |
| rated output | 0,23 kW |
| protect. class motor | 2 |
| protection class | IP 24 |

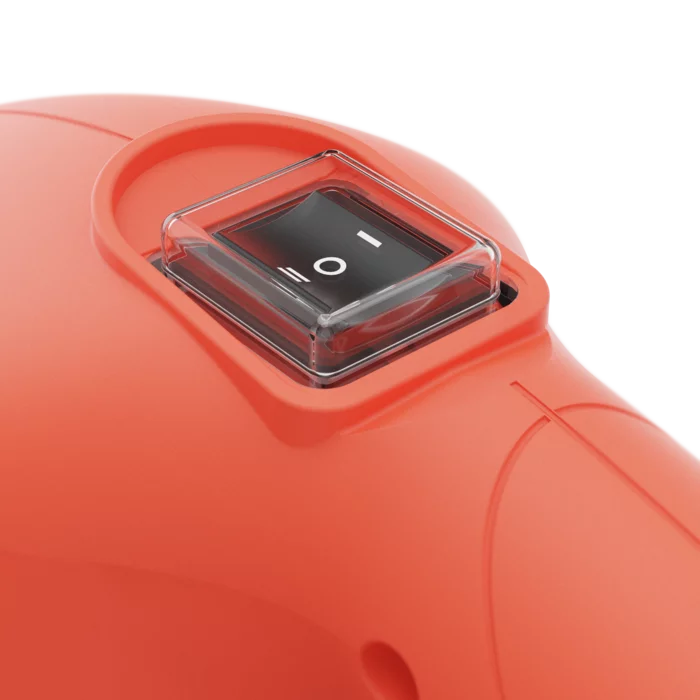

| speed control | 2 steps |
| supply voltage | 120 V |
| ambient temp. max. | 40 °C |
| ambient temp min. | -20 °C |
| current type | AC (alternating current) |
| motor type | FEM 3070 |
| version motor | commutator motor |
| acid protect. paint | no |
| wire cross-section | 0,75 mm² |
| cable length | 5,00 m |
| customized product | Campex |
| frequency | 60 Hz |
| max. outer diameter | 7,5 mm |
| motor protect.switch | yes |
| number of cores | 2 |
| Anti-twist device | no |
| starting current | 5,40 A |
| Cable type | SJT 2x18 AWG |
| type plug | NEMA 1-15 P-plug (USA) |
| UL approval | no |
| undervoltage prot. | no |
