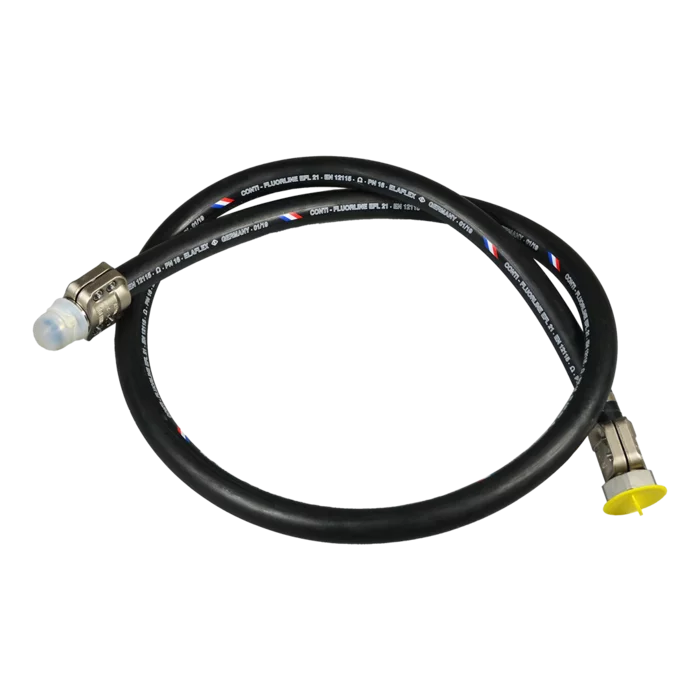

Universal hose line
Universal hose | 3 m | DN 21
Item no. 10-00110840
suitable for brass pump nozzle
Go to product details
- Weight:
- 2.356 kg
Product details
Universal hose line, DN 21, 3 m long, material of interior: Fluoropolymer THV, without any seams. Integrated with electrical conductivity, brass hose connector, nickel-plated aluminium screw-connected clamp fitting. Suitable for brass pump nozzle (order no. 10-001 12 340), with 32 mm diameter connection.
Can also be used for highly flammable media, in areas subject to explosion hazards.
- Fully-prepared hose line
- with rotating hose fitting to the pump nozzle
- integrated with conductivity - can be used in areas subject to explosion hazards
| Feature | Value |
|---|---|
| Gewicht | 2.356 kg |
| connection outlet | nozzle connection Ø 32 mm |
| Outer diameter | 31 mm |
| for use in haz. area | yes |
| FDA approval | no |
| FOOD approval | no |
| material | brass |
| Suction side | internal thread G 1 1/4" |
| hose length from | 3,0 m |
| nominal diameter | DN 21 mm |
| certificates | certificates |
| type hose line | universal hose |
| electric. conductive | yes |
| Inliner | yes |
| Mat. bracket clamp | aluminium nickel-plated |
| material inside | Fluoropolymer THV seamless |
| material outside | chloroprene black |
| swivelling | yes |
| version fitting | Spannloc |
| Category | hose line |
Media
The media listed below are intended as guidance for common applications. Other media can also be pumped – please contact our customer service for further information.
- Acetone, 10%, 20 °C
- Acetone, 10%, 40 °C
- Acetone, 100%, 20 °C
- Acetone, 100%, 40 °C
- Amyl acetate, 100%, 20 °C
- Amyl alcohol, 100%, 20 °C
- Benzine, 100%, 20 °C
- Butyl acetate, 100%, 20 °C
- Butylene glycol, 10%, 20-40 °C
- Butylene glycol, 100%, 20 °C
- Calcium hydroxide, 15%, 20 °C
- Diesel, 100%, 20 °C
- Dimethylformamide (DMF), 100%, 20 °C
- Ethanol, 100%, 20 °C
- Ethylene glycol, 100%, 20 °C
- Ethyl glycol, 100%, 20-40 °C
- Glucose, 100%, 20-40 °C
- Glycol, 100%, 20 °C
- Heating oil, 100%, 20 °C
- Isobutyl alcohol, 100%, 20-40 °C
- Isopropanol, 100%, 20-40 °C
- Isopropyl acetate, 100%, 20 °C
- Lime milk, 15%, 20 °C
- Linseed oil, 100%, 20 °C
- Methyl glycol, 100%, 20-40 °C
- Mineral oils, 100%, 20 °C
- Bicarbonate of soda, 10%, 20 °C
- Sodium nitrate, 45%, 20 °C
- Nitrotoluene, 100%, 20 °C
- Paraffin oil, 100%, 20 °C
- Paraffin oil, 100%, 40 °C
- Petroleum, 100%, 20 °C
- Phenol, 100%, 20 °C
- Phenol, 50%, 20 °C
- Propanol, 100%, 20-40 °C
- Propylene glycol, 100%, 20 °C
- Castor oil, 100%, 20-40 °C
- Silicone oil, 100%, 20 °C
- Toluene, 100%, 20-40 °C
- Glucose solution, 100%, 20-40 °C
