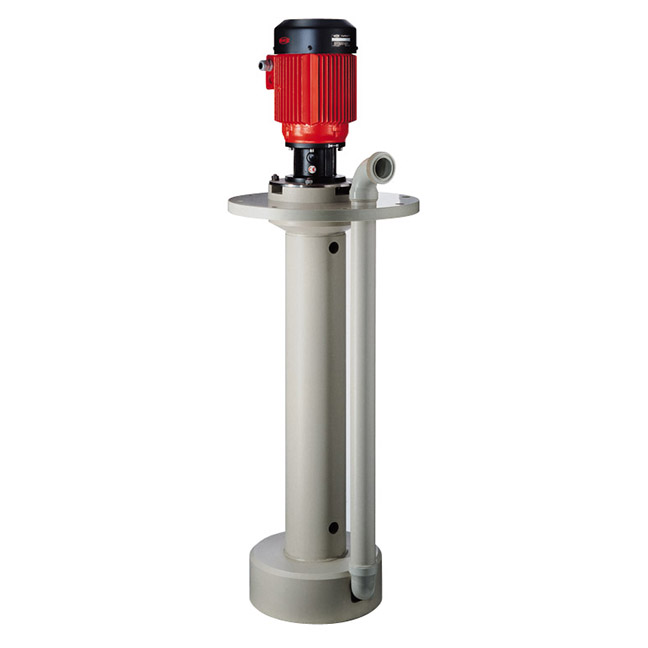

F 706

Stationary circulating and filter pump with impeller for delivery rates up to 1233 l/min

Branch: FoodBranch: Water treatmentBranch: AgricultureBranch: PetrochemistryBranch: PharmacyBranch: CosmeticsBranch: Surface technologyBranch: IndustryBranch: ChemistryBranch: Paints and lacquers

For pumping chemically aggressive fluids throughout the chemical industry and process engineering, as well as wherever acids and alkalis or chemically contaminated fluids with or without solids are to be pumped or circulated safely and economically.

Technical data:

  • Flow rate: max. 1233 l/min1
  • Delivery head: max. 33 mwc1
  • Viscosity: min. 1 mPas - max. 150 mPas1
  • Diameter pump housing: max. 417 mm2
  • Diameter mounting flanges: max. 500 mm2
  • Materials outer tube: Polypropylene
  • Media / Fluids: Acids, Alkalis, Aggressive media
  • Seal: Sealless in the liquid area
  • Container: Tanks > 1000 liters
  • 1 dependent on pump model, motor and medium
  • 2 dependent on pump model

Product attributes

  • Smooth running of the pump due to robust PP coated pump shaft and a thick-walled support tube
  • A range of carefully chosen impeller diameters
  • Designed for a long service life even in case of continuous use
  • Available in four sizes: 135, 185, 230 and 350

Benefits

  • Suitable for continuous use
  • Four different sizes for different power ranges
  • Sleeve bearing lubricated with medium for immersion lengths up to 2.000 mm
