For petroleum products with Battery Motor

Branch: IndustryBranch: Petrochemistry
  • .

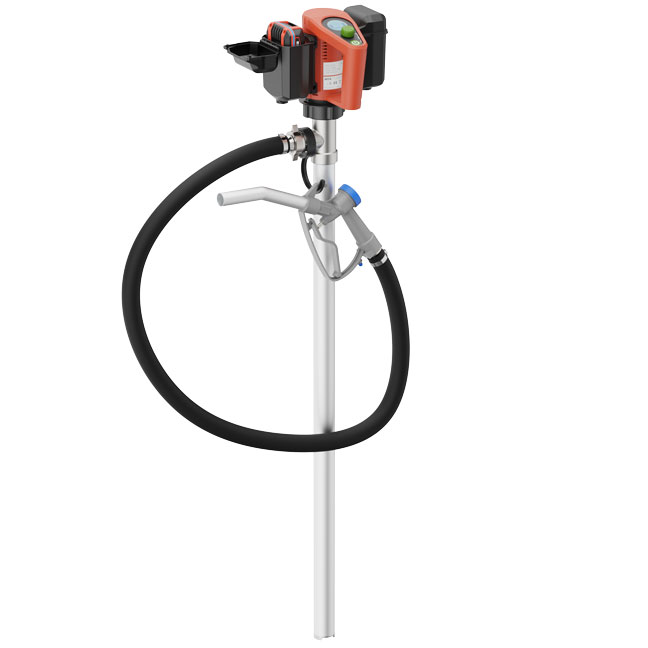

Pre-assembled pump kit for pumping petroleum products from 200 litre drums (Immersion length 1000 mm) or IBCs (Immersion length 1200 mm). Consisting of F 430 drum pump, outer tube material aluminium, with FBM 4100 battery motor (420 watts). Also included are hose line, hand nozzle and compression gland.

Technical data:

  • Flow rate: max. 80 l/min1
  • Delivery head: max. 12 mwc
  • Viscosity: min. 1 mPas - max. 1000 mPas
  • Outer tube diameter: max. 41 mm
  • Immersion length: 1000, 1200
  • Materials outer tube: Aluminium
  • Media / Fluids: Petroleum products
  • Seal: with mechanical seal
  • Container: 1000 l IBC, 200 l drums
  • 1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.

Product attributes

  • Easy disassembly
  • Universal and flexible application
  • Easy to clean, as no medium can enter the inner tube
  • No carryover of the medium, meaning that one pump can be used for different media
  • Also for slow media
  • Also for liquids that crystallise or harden

Benefits

  • Pump with mechanical seal
  • Pump can be dismantled into two parts without tools
