Pump stands
Brackets for VISCOPOWER progressive cavity pumps and drum pumps
Two versions:

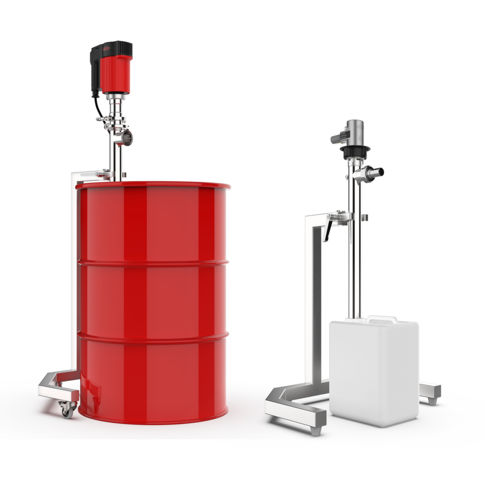

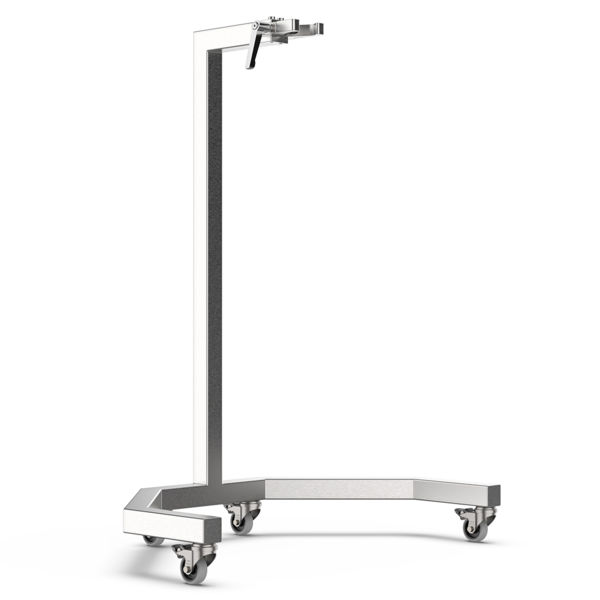

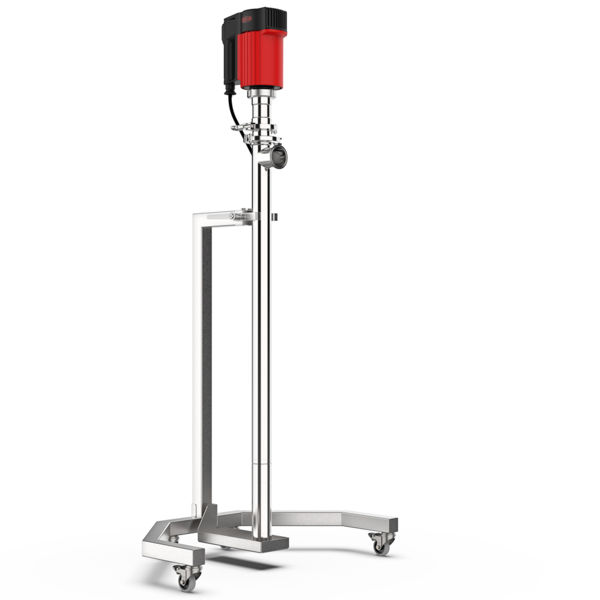

- High stands for standard barrels and tall hobbocks (clearance height approximately 900 mm)

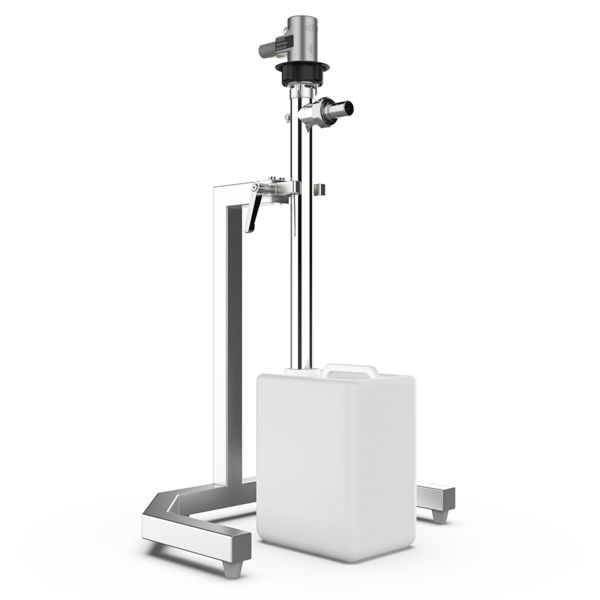

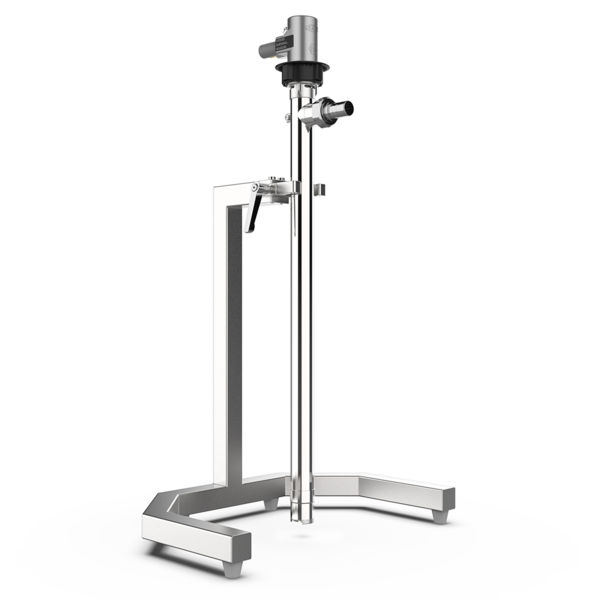

- low stand for canisters and open buckets (clearance height approximately 550 mm)

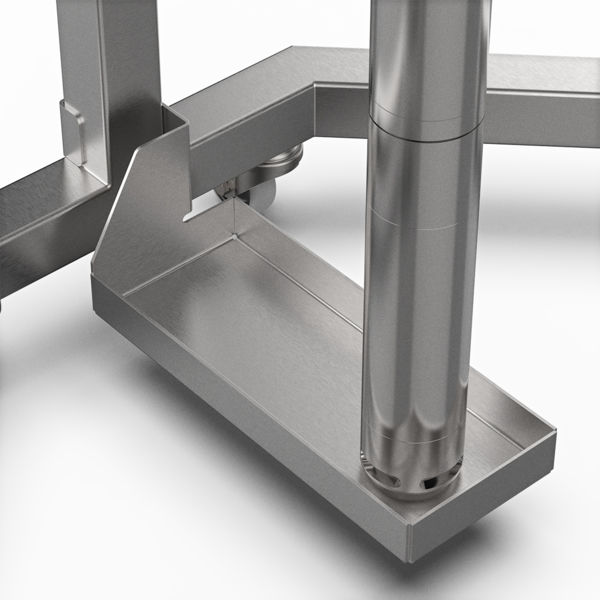

Optional accessory: An attachable stainless steel drip tray is available for collecting dripping media.
The brackets are designed for use with VISCOPOWER progressive cavity pumps and drum pumps (JUNIORFLUX, COMBIFLUX, F 400 series pumps) in low containers such as canisters, hobbocks or open buckets. They are an alternative to complex designs with support brackets and balancers. The newly developed pump stand also provides a food-compliant support for standard open drums. They are suitable for pumps with a diameter of 25-54 mm and are available in two versions.
Vorteile/Merkmale:
- Suitable for all drum and container pumps with an outer diameter of 25 mm - 54 mm
- Material: stainless steel

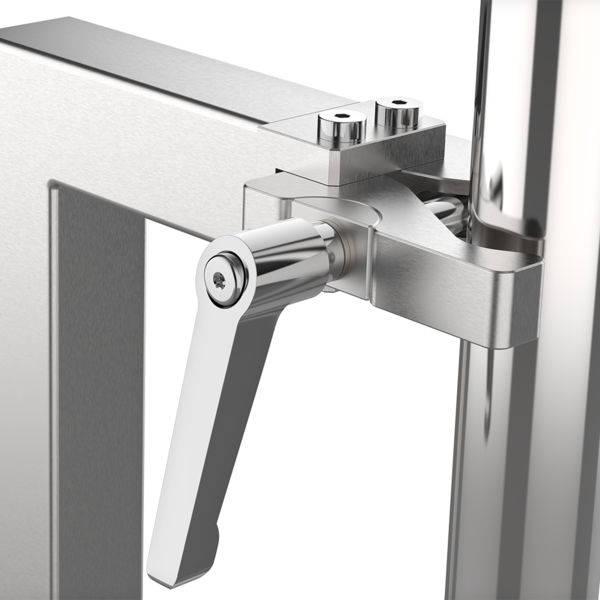

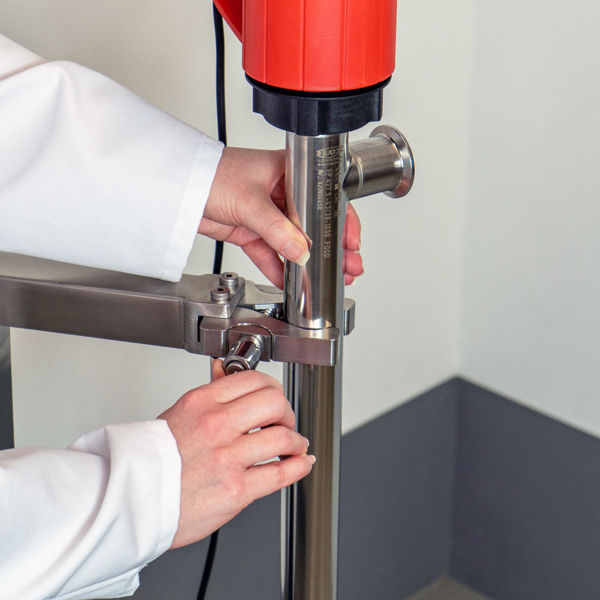

- Pump is held in place by a retaining clip on the pump tube
- Also suitable for FOOD and hazardous areas
- Optionally available with drip tray to safely collect dripping liquid from the pump.
